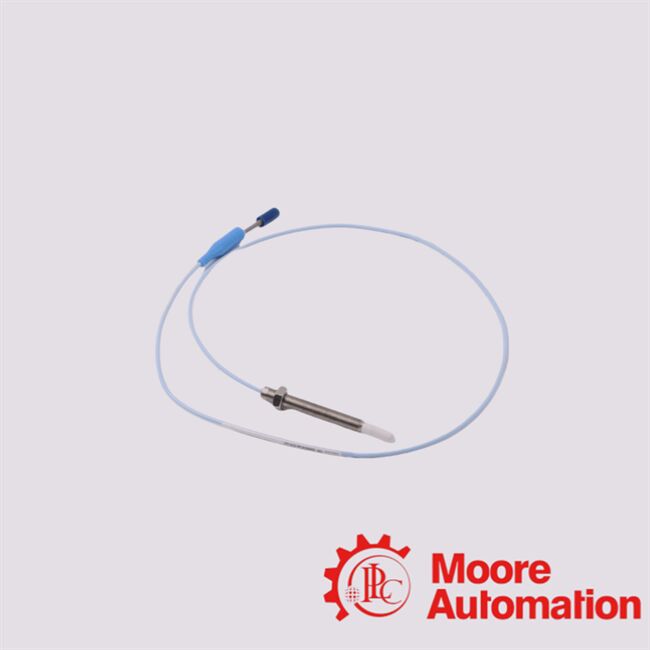

330908-00-30-10-01-05 Bently Nevada Proximity Probe
Description
The 330908-00-30-10-01-05 is part of the 3300 series “NSv / XL” proximity probes — electromagnetic (eddy-current) sensors for non-contact measurement of position, displacement, and vibration of conductive targets (e.g. rotating shafts).The probe converts changes
in distance (gap between probe tip and target) into a proportional electrical signal, which is used by associated monitoring equipment (e.g. Proximitor sensors + monitoring system) to monitor shaft radial position, vibration, speed, and
more.The probe body is machined stainless steel (typically AISI 304 SST) for durability and corrosion resistance.It is factory-calibrated (for a standard reference target, usually
Bently-supplied AISI 4140 steel) and meant to be part of a full transducer system — probe, extension cable, and Proximitor sensor.
|
FAQ
|
|
What does this probe measure — what is its function?
Used to measure radial displacement, shaft vibration, shaft positional changes, and can also be used for speed/keyphasor sensing (when combined with appropriate target arrangement), in rotating machinery (turbines, compressors, pumps, etc.).
|
|
Is the probe alone sufficient — or do I need other components?
The probe must be used as part of a full transducer system: probe + extension cable + Proximitor® sensor (or other compatible signal conditioner)
+ monitor. The factory calibration, linearity, and accuracy specs apply only when the full system is assembled under
correct conditions (correct target material, gap, etc.).
|
|
What kind of targets does it work with?
By default, calibration assumes a reference target made of Bently-specified AISI 4140 steel (31 mm diameter or larger) and a
probe gap (e.g. 1.0 mm) for correct response and linearity. If you use a different target material or geometry,
results may deviate unless re-calibrated.
|
