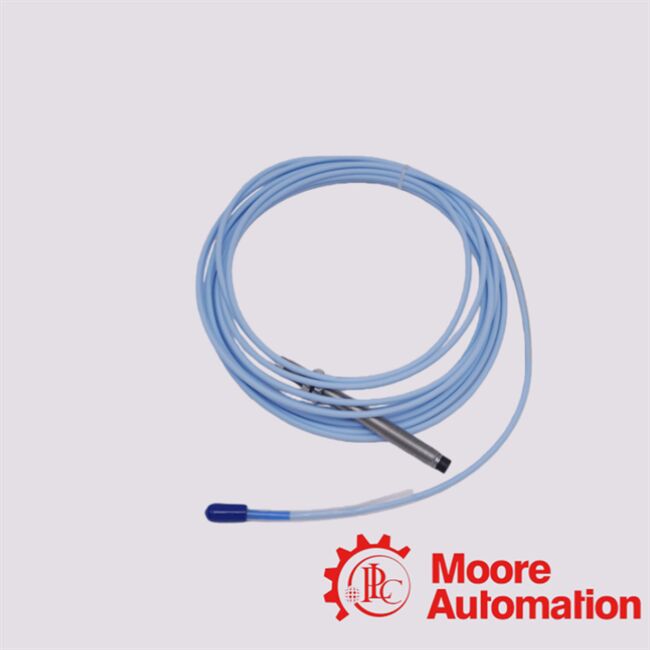

330103-00-10-10-12-05 Bently Nevada Proximity Probe
Description
The 330103‑00‑10‑10‑12‑05 is a member of the 3300 XL 8 mm Proximity Probe family from Bently Nevada.It is an eddy‑current, non‑contacting proximity probe: it measures the distance (gap) between its tip and a conductive target (e.g. a steel shaft), and
converts that gap (static or dynamic) into an electrical signal. This allows measurement of shaft radial displacement, vibration (dynamic movement), shaft position/clearance, etc. When combined with a compatible signal
conditioner / “Proximitor” + monitoring system, you get usable outputs for displacement/vibration monitoring.The probe has an 8 mm diameter sensing tip (typical for 3300 XL 8 mm series) and the body
is stainless steel (AISI 303/304); the tip is often PPS (polyphenylene sulfide).In short — 330103‑00‑10‑10‑12‑05 is a standard 3300 XL 8 mm eddy‑current proximity probe
intended for industrial rotating machinery monitoring, giving non‑contact displacement/vibration sensing.
|
FAQ
|
|
Does this probe alone output useful data?
No — the probe on its own does not output a usable displacement or vibration readout. It must be used as part of a full 3300 XL transducer system (probe + extension cable + proximitor/sensor + monitor). The raw eddy‑current output needs conditioning & linearization to produce usable signals (gap,
vibration, displacement, etc.).
|
|
What gap (distance to shaft) should I set for operation?
Nominal (factory calibration) systems for 3300 XL probes often assume a 1.0 mm gap to the target (e.g. 1.27 mm is sometimes cited as
recommended “set‑up” gap for certain configurations). Deviations from recommended gap can affect linearity, sensitivity, and
measurement accuracy — so ensure installation follows guidelines (and target is standard steel as
per calibration reference).
|
|
What kind of targets does the probe expect?
The probe works with conductive metallic targets — e.g. steel shafts (commonly hardened steel). The standard calibration assumes
a standard steel target (e.g. Bently‑supplied AISI 4140 steel of certain diameter or larger) for proper system accuracy
and interchangeability. Using non‑standard materials, coatings, or unusual geometries may require re‑calibration
or may affect measurement accuracy and linearity.
|
