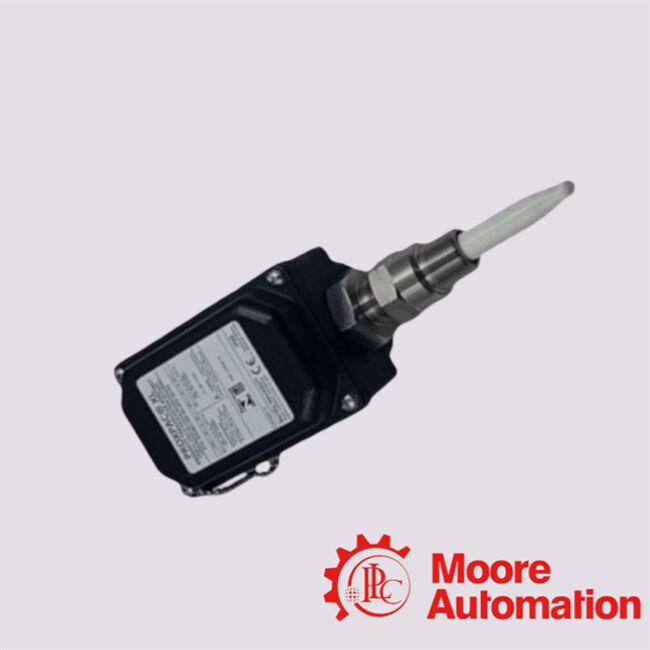

330881-28-00-165-07-02 Bently Nevada Proximity Transducer Assembly
Description
The 330881 PROXPAC XL Proximity Transducer Assembly is part of the PROXPAC XL line — a fully self-contained proximity sensor/transducer system for vibration and displacement
(shaft position) monitoring.The “PROXPAC XL” assembly integrates the probe and the Proximitor electronics in a single rugged housing — eliminating the need for a separate
Proximitor housing and the extension cable between probe and sensor.In short: the 330881-28-00-165-07-02 is a high-reliability, integrated proximity
transducer designed for precise, non-contact measurement of shaft displacement/vibration — suitable for heavy industrial
machinery monitoring — built to industrial environmental and durability standards.
|
FAQ
|
|
Q: What does “PROXPAC XL” mean?
A: It refers to a series of proximity transducer assemblies from Bently Nevada. In a PROXPAC XL assembly, the probe and Proximitor sensor
are combined in one housing — eliminating the need for separate extension cables or
external Proximitor housings.
|
|
Q: What physical principle does it operate on?
A: The system measures the distance between the probe tip and a conductive surface. It generates an output voltage
that's directly proportional to this distance, enabling non-contact measurement of static
displacement (e.g. shaft position) and dynamic motion (vibration).
|
|
Q: What are typical uses of such a transducer?
A: Common uses include vibration monitoring, rotor shaft position measurement
(e.g., in fluid-film bearing machines), and general proximity
sensing in industrial rotating machinery.
|
