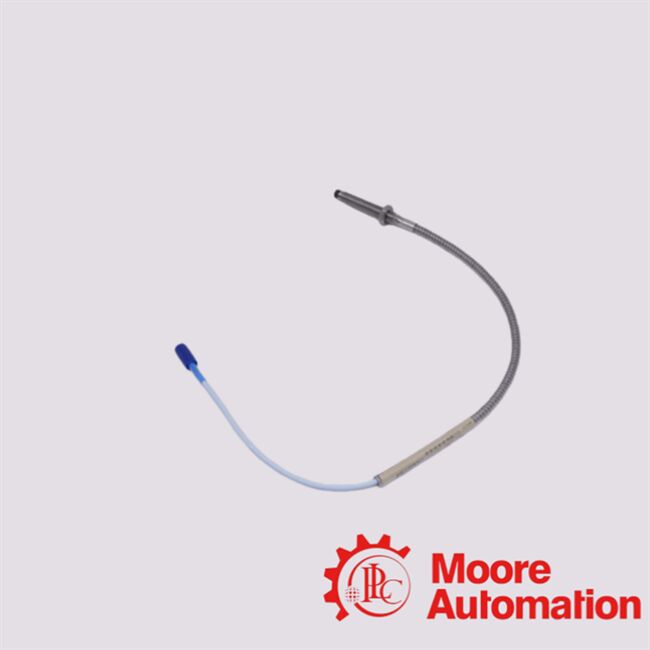

330104-00-06-05-02-05 Bently Nevada Proximity Probe
Description
The probe belongs to the Bently Nevada 3300 XL series, specifically the 8 mm “330104” proximity probe — designed for non-contact measurement of shaft position (displacement) or
vibration in industrial rotating machinery.The probe is built to be interchangeable within the 3300 XL system: probe, extension cable, and sensor are modular and can be swapped as
needed — helpful for maintenance, replacement, or upgrades.The 3300 XL line (including this probe) is designed for industrial applications — especially fluid-film bearing
machines and other rotating machinery — where reliable, precise, non-contact monitoring is required.In short: this probe is a high-quality industrial proximity sensor
tip (8 mm type), configured for medium-length cable (0.5 m), with robust connector/cable, designed for precision non-contact
displacement/vibration measurement of shafts or rotating machinery components.
|
FAQ
|
|
Q: What does “3300 XL 8 mm probe” mean?
A: “3300 XL” is Bently Nevada’s series name for its proximity transducer line; “8 mm” refers to the probe’s sensor head size (8 mm
diameter) — meaning the probe tip is an 8 mm-class eddy-current type proximity sensor.
|
|
Q: What does the part number 330104-00-06-05-02-05 specify?
A: It encodes physical configuration details: unthreaded length (00 = 0 mm), case length (06 = 60 mm), total assembly/cable
length (05 = 0.5 m), connector/cable type (02 = miniature coaxial ClickLoc), and agency
approval/certification (05 = CSA/ATEX/IECEx).
|
|
Q: What physical measurements or outputs does the probe provide?
A: When used in a full 3300 XL transducer system (with proper Proximitor electronics and target), the
probe + electronics produces an output voltage proportional to the distance between probe
tip and conductive target — enabling measurement of shaft displacement
(static) or vibration (dynamic).
|
