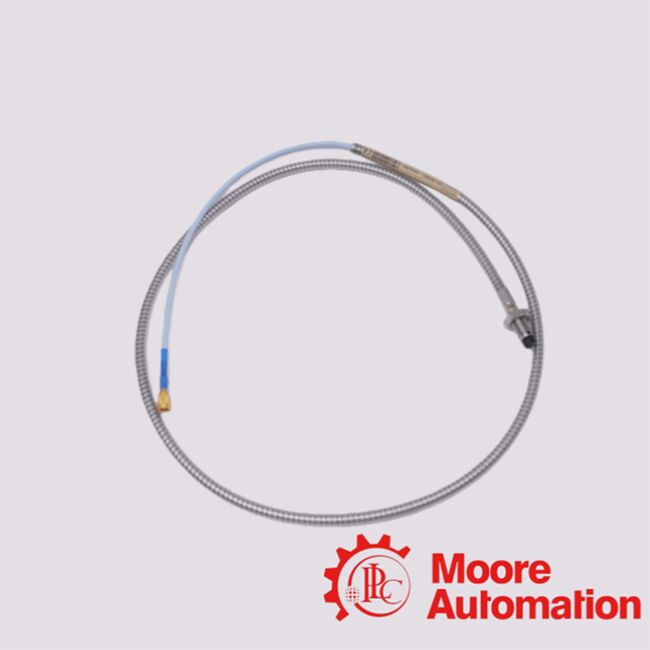

330104-00-02-50-02-05 Bently Nevada proximity sensor cable
Description
The “330104” model series refers to 8 mm probes / components of the 3300 XL proximity transducer line.The cable (as part of a full 3300 XL assembly) is designed for eddy‑current proximity measurement
systems: the cable carries the probe’s signal to the sensor electronics (Proximitor), enabling noncontact measurement of shaft displacement or vibration.In short: the
330104‑00‑02‑50‑02‑05 is a standard 5‑meter, 75 Ω coaxial extension cable for 3300 XL 8 mm proximity probes, with ClickLoc connectors and hazardous‑area
certifications, used to transmit the probe signal to the sensor electronics in industrial
machinery shaft‑position or vibration monitoring systems.
|
FAQ
|
|
Q: What is the role of this cable in a proximity transducer system?
A: This cable carries the output from the 8 mm probe tip to the sensor electronics (Proximitor) in a 3300 XL proximity transducer
system. It enables non-contact eddy‑current measurement of shaft position / vibration.
|
|
Q: What are the key electrical/mechanical specs for the cable?
A: The cable is 75 Ω coaxial, with typical capacitance ~ 69.9 pF/m. The ClickLoc connectors are gold‑plated
and corrosion‑resistant. The design ensures signal integrity between probe and sensor.
|
|
Q: What are system limitations or what must be verified when using this cable?
A: The overall performance (linearity, accuracy, noise immunity) depends on the full transducer system
— not just the cable. The linear measurement range, sensitivity, and calibration depend on
the matched probe, target material, and sensor electronics. For critical applications, the
whole assembly should be configured per the manufacturer’s datasheet
and calibrated appropriately.
|
