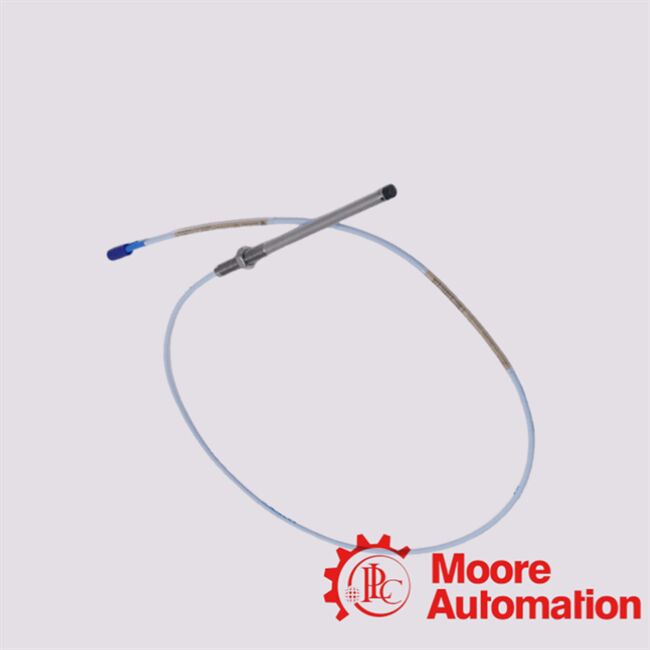

330101-39-67-10-12-05 Bently Nevada 3300 XL 8 mm Probe
Description
The “330101” base indicates this is a 3300 XL 8 mm eddy‑current proximity probe.330101‑39‑67‑10‑12‑05 likely denotes a variant of 3300 XL 8 mm probe configured with a standard
or specified case‑length, a 1.0 m cable (or standard probe package), ClickLoc connector (or equivalent), and applicable approvals.this part is a heavy‑duty, 8 mm eddy‑current
proximity probe meant for precise, non‑contact shaft‑position or vibration monitoring in industrial rotating machinery (e.g. turbines,
compressors, pumps), built with rugged materials and designed for modular use within the 3300 XL system.
|
FAQ
|
|
Q: What does a 3300 XL 8 mm proximity probe do?
A: It senses the gap between the probe‑tip and a conductive surface (e.g. rotating shaft). When connected (via cable and Proximitor electronics)
it outputs a signal (voltage) proportional to that gap — enabling measurement of shaft displacement (clearance or static
position) and dynamic vibration.
|
|
Q: What are typical features / construction materials?
A: The probe tip is molded from PPS (polyphenylene sulfide) — a durable polymer; the probe body/case is
stainless steel (AISI 303/304), ensuring mechanical strength and corrosion resistance.
|
|
Q: What operating conditions (temperature, environment) can it handle?
A: Standard 3300 XL 8 mm probes operate reliably from approx. –52 °C to +177 °C. Extension-cable and
connector temperature limits depend on cable type. They are designed to resist industrial
conditions (vibration, temperature variation, possibly oil/contaminants
depending on cable/housing option).
|
