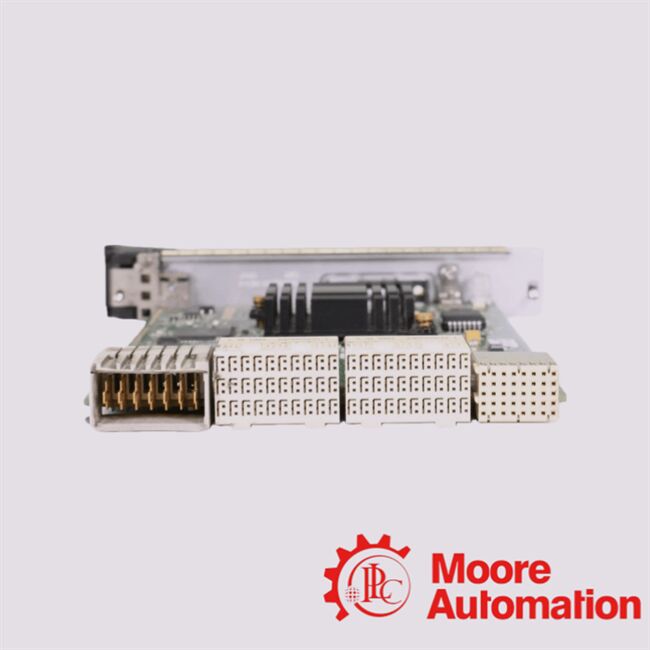

PXIE-8360 PXI Remote Control Modules

• MXI‑Express x1 interface (PCIe to PCI bridge): The module uses an MXI‑Express x1 copper link to connect a host PC (desktop, laptop, rackmount) to a PXI/PXI‑Express (or CompactPCI) chassis, letting the host control the chassis as if the PXI modules were local PCI/PCIe cards.

• Transparent to software / driver level: Because the MXI‑Express link presents the chassis as a standard PCI/PCIe bus to the operating system, no special driver changes or custom software is required — PXI modules inside the chassis behave like regular PCI/PCIe cards.

• Flexibility of host systems: PXIe‑8360 supports control from desktop PCs, rackmount servers, workstations, or laptops (with appropriate host adapter).

• Physical separation between host and instrumentation chassis: Since the module uses a cabled connection (copper MXI‑Express cable up to ~7 m), your instrumentation chassis can be located away from the host PC — e.g. in a lab rack, remote bench, or isolated area.

• Industry‑grade robustness and standard compliance: The module adheres to the PXI‑5 Express Hardware Specification (Revision 1.0). It has been tested to meet vibration, shock, and environmental standards (e.g. MIL‑PRF‑28800F, IEC-60068) for industrial use.

• Support for modular instrumentation ecosystems: Once connected, PXI (or CompactPCI, CompactPCI‑Express, even CompactRIO or VXI in some configurations) devices inserted in the chassis behave as if they are local PCI/PCIe devices — allowing seamless integration of measurement, data acquisition, signal generation, switching, etc.

Using PXIe‑8360 enables a variety of practical scenarios, especially in automated test, measurement, and distributed instrumentation systems:

• Remote / Rack‑mounted test systems: You can place PXI chassis (containing DAQ modules, RF modules, signal generators, digitizers, etc.) in a rack or remote location while controlling them from a PC elsewhere — useful for labs, manufacturing test benches, or distributed test environments.

• Modular instrumentation systems: When combining multiple PXI modules (data acquisition, digitizers, RF instruments, switching, etc.), using PXIe‑8360 lets them act like PCI/PCIe cards in a PC — giving flexibility and modularity while reusing existing PC resources.

• Scalable / expandable test systems: Although PXIe‑8360 itself uses x1 link and does not support multi‑chassis daisy‑chaining, it fits into a broader MXI‑Express ecosystem — allowing building of multi‑chassis systems if you use more advanced remote‑control or bus‑extension modules.

• Industrial / environmental testing setups: Because of its compliance with industrial environmental and vibration standards, PXIe‑8360 is suitable for test rigs, environmental testing stations, or other industrial automation contexts where ruggedness matters.

• Flexibility in host platform and form factor: Whether you use a desktop workstation, a server, or a laptop, you can drive the PXI system — useful when the host system form factor is constrained (e.g. a laptop in a field test).
