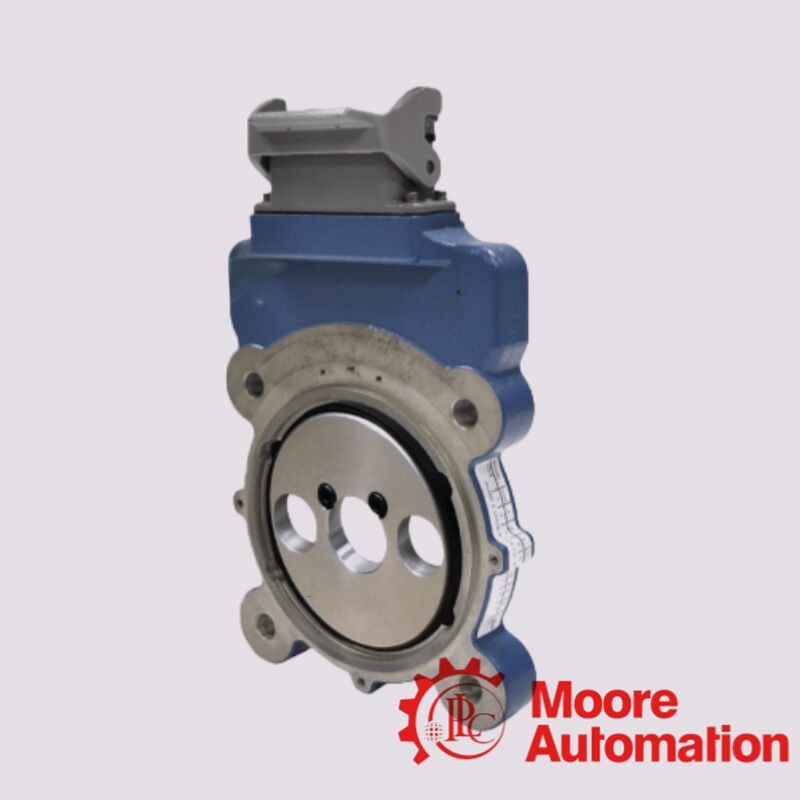

AV56A-1XFX6YXGP50 motor

Heavy‑duty industrial design

• Built as part of Avtron’s THIN‑LINE™ III Modular Encoder family — rugged and reliable.

• Magnetic sensing technology resists dust, oil, moisture and contamination — superior to optical encoders in harsh settings.

• Fully potted electronics provide environmental protection and long life.

• Mechanical & mounting

• 4.5″ C‑Face flange mount (NEMA 56C standard) fits many motors directly.

• Cam‑screw rotor with 1 1/8″ thru‑shaft bore for secure, reliable shaft attachment.

• Electrical & signal characteristics

• Incremental quadrature output: Channels A and B plus index pulse Z (standard 1024 pulses per revolution for this configuration).

• Voltage: Universal 5–24 V DC operation for compatibility with controllers and drives.

• Industrial connector with LED diagnostics: Easy field connection and visual status indication.

• Robust outputs: Line‑driver or differential signals suitable for long cable runs and noisy environments.

• Durability & reliability

• Magnetic sensing with no bearings or glass discs — minimal wear, high tolerance to vibration/shock.

• Designed for continuous 24/7 operation in demanding facilities.

• Wide operating temperature range and sealed construction (many configurations reach IP67 or similar).

• Diagnostic support

• On‑board LED indicator shows encoder health: power up, signal quality, faults or wiring issues.

The AV56A‑1XFX6YXGP50 is widely used where precise rotational position and speed feedback are critical in tough industrial environments.

Industrial Motion Control

• Motor speed and position feedback for AC/DC motors, especially where control loops (servo/PLC) demand accurate incremental data.

• Used with inverters, servo drives, PLCs and motion controllers for precise velocity/position control.

Heavy Machinery & Manufacturing

• Steel mills: closed‑loop speed control on rolling mills, tension control systems and coiler/uncoiler drives.

• Fabrication lines: synchronization of conveyor speeds, automated cutting or forming stations.

• Paper, mining, material handling: rugged performance under vibration, dust, heat or contaminants.

Energy & Turbine Systems

• Wind turbine blade pitch control: models like AV56A1KFX6YXGP50 are used to sense rotor position on GE pitch motors.

• Large generator control: provides reliable pulse feedback in power generation applications.

Robotics and Automation

• Position sensing for automated tooling, robotic axes, and other servo‑driven mechanisms requiring incremental feedback.

Process Control Systems

• Integrates into closed‑loop process control where rotational accuracy and durability are essential (e.g., mills, mixers, extruders).
