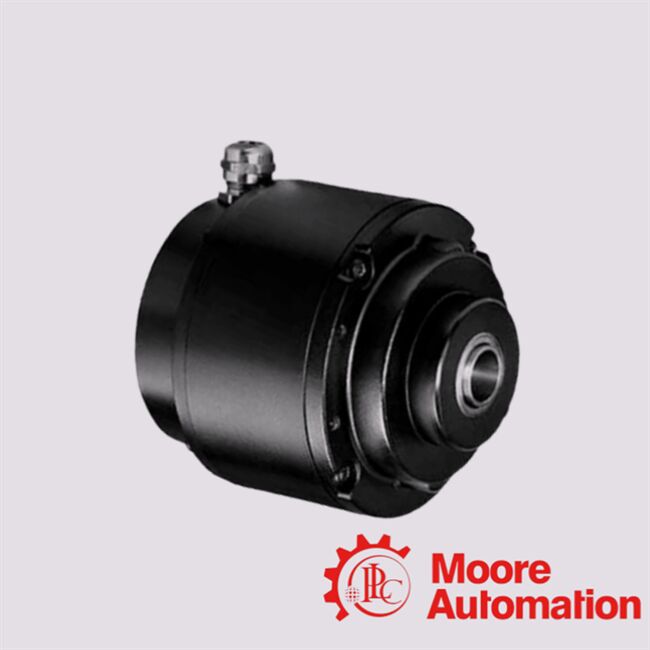

- HOG10DN1024I INCREMENTAL ENCODER
Description
The HOG10DN1024I is a heavy-duty incremental rotary encoder designed for industrial motion feedback and position sensing. Incremental encoders generate a series of electrical pulses as the shaft
rotates — the pulses correspond to movement, speed, and direction but do not inherently provide absolute position without an external counter or controller.This model belongs
to the HOG 10 family of robust encoders often manufactured by Baumer/Hübner. It typically features a blind hollow shaft design with 1024 pulses
per revolution (PPR) and provides high-quality, high-resolution feedback signals for demanding automation environments.
Feature And Application of HOG10DN1024I
| Feature |
Application |
Electrical & Output
-
Incremental output with 1024 pulses per revolution (PPR) — good resolution for precise feedback.
-
Output signals include quadrature channels (e.g., K1/A, K2/B) plus reference/index (K0/Z) and inverted versions for differential interface.
-
Output driver typically HTL (high-threshold line driver) suitable for industrial PLC interfaces over long cable runs (up to ~350 m).
-
TTL/RS422 versions available on request for alternative signal standards.
-
Mechanical & Environmental
-
Robust mechanical design — die-cast aluminium housing and hybrid bearings for extended service life.
-
Blind hollow shaft configuration, typically with 16 mm bore (16H7) for direct mounting on motor shafts.
-
High permissible radial/axial loads — supports heavy-duty shafts (≈450 N axial, 600 N radial).
-
Wide operating temperature range (approximately -40 °C to +100 °C).
-
Protection rating IP66, resistant to dust and water ingress — ideal for harsh industrial settings.
-
Shaft insulation up to 2.8 kV for electrical safety and immunity.
-
Shock/vibration resistance (shock up to 300 g, vibration up to 20 g).
|
The HOG10DN1024I is suited to a wide range of industrial motion control and automation tasks thanks to its precision, ruggedness, and reliable electrical outputs:
1. Motion Control & Feedback
2. Speed & Direction Sensing
- Conveyor and indexing systems — tracks movement, calculates velocity, and detects shaft direction.
- Motor control — used with PLCs, motion controllers or drives to monitor rotation and speed.
3. Industrial Automation
4. Harsh Industrial Environments
- Heavy machinery and steel plants — robustness and IP66 rating make it suitable for extreme conditions.
- Material handling and cranes — accurate rotational info feeds into control logic for safety and coordination.
|
