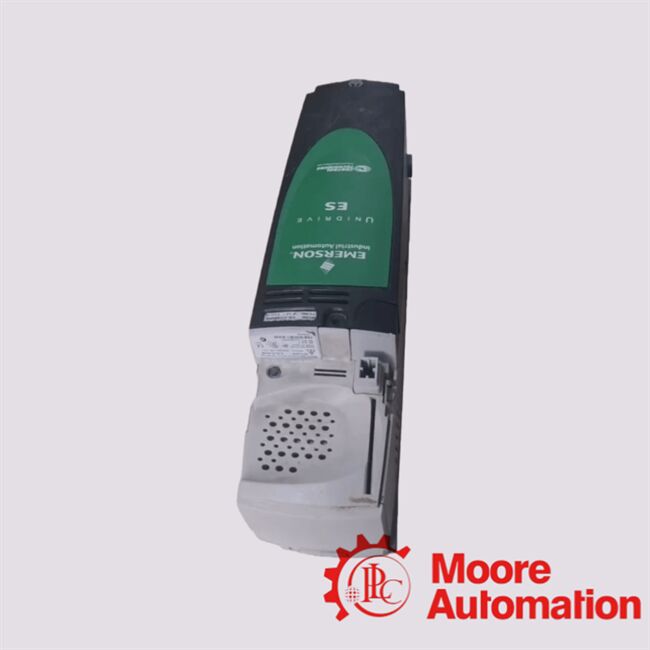

SP1406 Emerson control module

The Emerson SP1406 is a high‑performance industrial control module in the Unidrive SP family, engineered to manage three‑phase AC motors with precision and

efficiency. It serves as a variable frequency drive (VFD) or AC servo drive, enabling accurate speed and torque control in automation systems.ompact and

 robust module suitable for factory floors, conveyors, pumps, HVAC systems, and manufacturing lines.

SP1406

Installation and Safety Notes

⚙️ Installation Notes

Pre‑Installation Checks

• Power Off
  Ensure all power sources are disconnected before mounting or wiring.
• Environment
  Install in a clean, dry location with good ventilation; avoid direct moisture and excessive dust.
• Mounting
  Mount the SP1406 drive on a suitable panel or DIN rail, ensuring adequate clearance around the unit for heat dissipation.
• Grounding
  Properly connect the protective earth (PE) ground to reduce electrical noise and protect against surges.

Electrical Connections

• Input Power: Connect three‑phase AC power (380–480 V) to the designated L1, L2, L3 terminals.

• Output to Motor: Connect U/T1, V/T2, W/T3 from drive to motor terminals.

• Control Wiring: Connect I/O, control, and communication lines per manual.

• EMC Filters & Braking: Install optional filters or braking resistors per application needs (especially for dynamic braking or regenerative loads).

Startup Procedure

• Initial Power‑on
  Power the drive after all connections are verified.
• Parameter Setup
  Set motor parameters including rated current, voltage, frequency, control mode (V/f or vector), and acceleration/deceleration times.
• Test Run
  Perform a test run at low speed to confirm correct wiring and response before full load operation.

For exact wiring diagrams, terminal labeling, and configuration settings, refer to the official SP1406 hardware and commissioning manual from Emerson Control Techniques.
