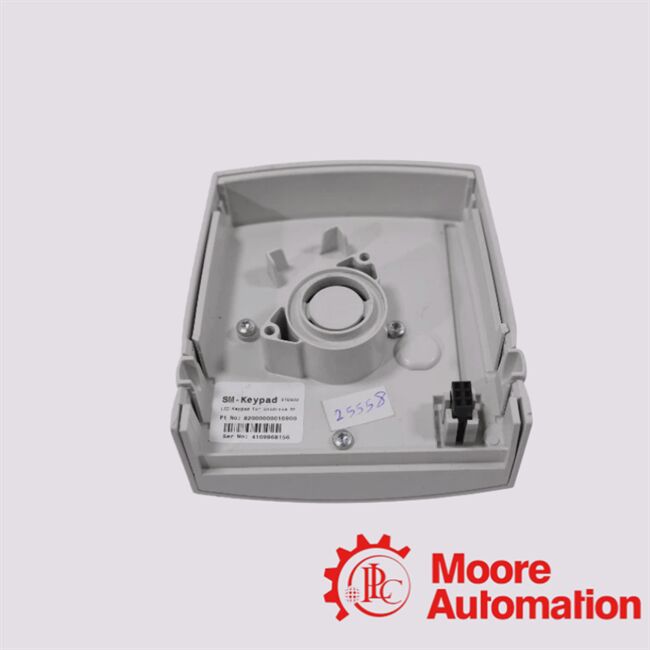

- STDO32 SM keypad features a 7-digit LCD
Description
The SM‑Keypad is an optional operator interface module designed for Control Techniques Unidrive SP series variable speed drives.
It provides local control and monitoring without needing an external PC or HMI.
Feature And Application of STDO32
| Feature |
Application |
Display & Interface
-
7‑digit (or multi‑line) LCD display that shows drive status, parameter values, parameter names, and drive fault/trip info. The LCD allows clearer read‑out than a simple 7‑segment LED display.
-
Can include on‑screen help text for parameters and fault descriptions.
-
Navigation keys (joypad) and operational buttons let users scroll menus, edit parameters, and command the drive (e.g., start/stop).
Ease of Use
-
Plug‑on or remote‑mountable interface for Unidrive SP drives and similar.
-
Quick access to real‑time drive data and diagnostics directly at the drive without needing a PC.
-
Optional Passcode lockout to prevent unauthorized configuration changes (common in such keypad add‑ons).
|
Local Drive Monitoring
Installed directly on or near the drive to:
-
View motor speed, frequency, currents, and statuses in real time.
-
Monitor faults and warnings quickly and clearly without external tools.
Configuration & Setup
Used during commissioning and tuning of the drive:
-
Navigate menus to set or adjust key parameters.
-
Read descriptive text for parameters and alarms (if supported), helping reduce setup errors.
Field or Panel Mount Control
|
