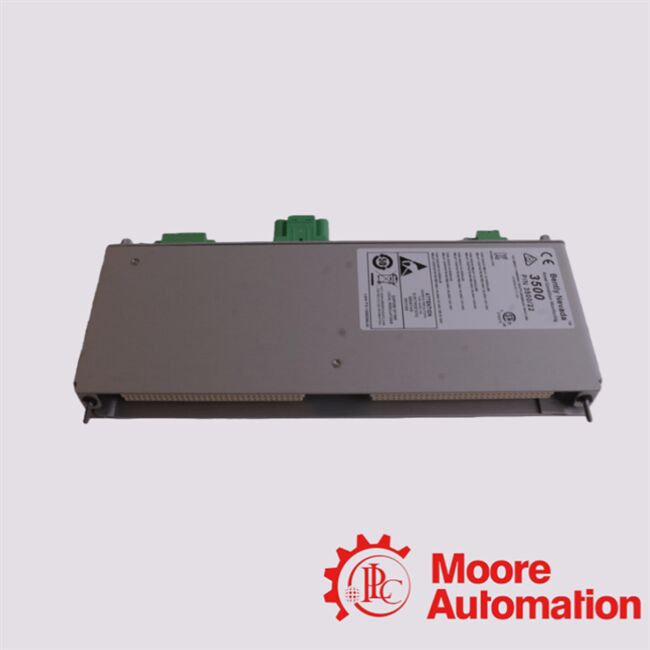

146031-01 Bently Nevada Transient Data Interface I/O Module
Description
The Bently Nevada 146031‑01 is a Transient Data Interface (TDI) I/O module used in the Bently Nevada 3500/22M family of machinery protection and condition monitoring systems. It serves
as the communication bridge between the 3500 monitoring rack and external host software platforms such as System 1® Machinery Management Software and the
3500 System Configuration tools.This module occupies Slot 1 in the 3500 rack (next to the power supply) and provides a 10Base‑T/100Base‑TX Ethernet I/O
interface for data transmission. It combines the traditional functions of a Rack Interface Module (RIM) with a
communication processor, enabling both static and (optionally) dynamic/transient
data capture and transfer.
|
FAQ
|
|
Q1 — What is the main function of the 146031‑01 module?
A: It provides the communication interface between a 3500 rack and external host software platforms like System 1®, enabling data collection and transmission over Ethernet.
|
|
Q2 — What does “Transient Data Interface” mean?
A: It refers to the module’s ability to acquire and transmit both steady‑state and transient (waveform) data from M‑series
monitors in the 3500 rack to an external software system.
|
|
Q3 — Does the 146031‑01 capture dynamic data by default?
A: By default, it captures static data. To record high‑resolution transient or dynamic waveform
data, an optional Channel Enabling Disk is needed.
|
