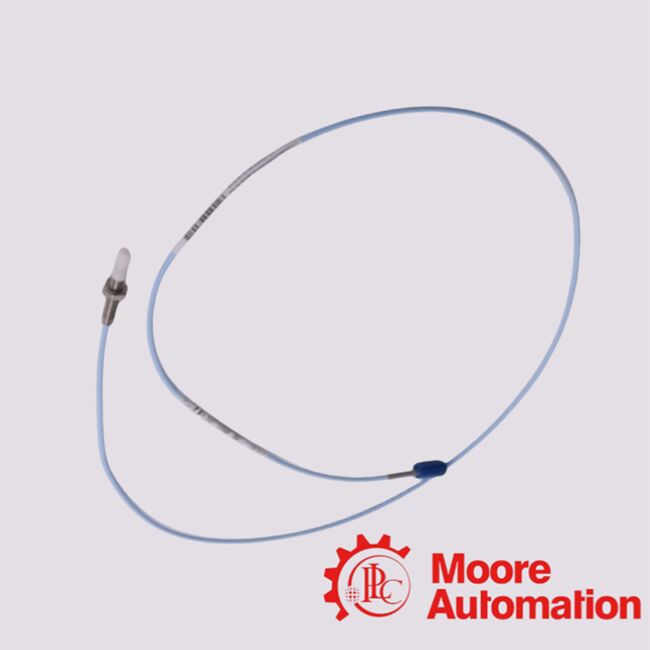

330901-00-15-05-02-00 Bently Nevada 3300 NSv Proximity Probes
Description
The Bently Nevada 330901‑00‑15‑05‑02‑00 is a 3300 NSv series proximity probe designed for high‑precision non‑contact shaft position and vibration measurement in rotating industrial
machinery. These sensors are commonly used in machinery protection and condition‑monitoring systems to detect vibration, displacement, speed, and other dynamic
conditions without physical contact. The “NSv” family is a compact, lightweight proximity probe tailored for installations
where space or traditional 3300/3300 XL series probes may not fit.
|
FAQ
|
|
Q1 — What is a 3300 NSv proximity probe?
A: It’s a non‑contact eddy‑current sensor that measures the distance (gap) between the probe tip and a target—usually a rotating shaft—to provide position and vibration signals to machinery protection systems like Bently Nevada’s 3500 or System 1®.
|
|
Q2 — What does the part number mean?
A:
-
330901: Base NSv probe model (1/4‑28 UNF thread).
-
00: No unthreaded section (i.e., full threaded body).
-
15: Probe case length ≈ 1.5 in (38 mm).
-
05: Total assembly length ≈ 0.5 m (20 in) cable.
-
02: Miniature coaxial ClickLoc™ connector.
-
00: No special agency approvals.
|
|
Q3 — How is this probe installed?
A: Screwed into a threaded proximity port or boss on the machine housing. Proper torque limits (e.g., ~5.1 N·m recommended) should be observed to avoid damage.
|
