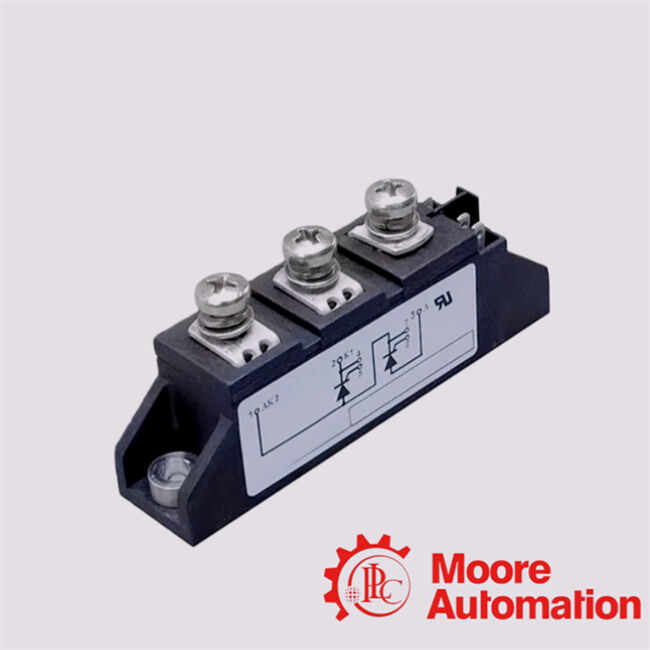

MCC95-16IO1B Direct copper bonded Al2O3 -ceramic base plate

 Electrical & Package Characteristics

• Dual thyristors in one module: Contains two SCRs connected in series for controlled AC/DC switching and rectification.

• Rated Voltage: Up to 1600 V repetitive off‑state/reverse voltage (V_RRM/V_DRM) suitable for line‑voltage power control.

• Rated Current: Average forward current ~116 A, RMS on‑state up to ~180 A.

• High Surge Capability: Can handle high non‑repetitive surge currents (e.g., ~2.25 kA).

• Gate Trigger: Typical low trigger current and voltage, making control easier in driver circuits.

• Operating Temperature: Standard industrial range up to ~125 °C junction.

• Standard Package: JEDEC TO‑240AA for industry compatibility and ease of mounting.

 Thermal & Mechanical Advantages

• Direct Copper Bonded (DCB) Al₂O₃ Ceramic Base Plate: Delivers high thermal conductivity and excellent electrical isolation, improving heat dissipation and reliability in high‑power use.

• Planar Passivated Chips: Enhance long‑term stability and predictable blocking characteristics over wide temperature ranges.

• 3600 V Isolation Voltage: High insulation withstand voltage between power terminals and module base.

• Industry‑Standard Footprint: Compact and widely compatible module outline for control boards and heatsinks.

The MCC95‑16IO1B excels in industrial power control scenarios where robust AC/DC switching and high current handling are required:

 Power Control & Conversion

• Controlled rectifiers: Used in converting AC to DC with adjustable output (e.g., in power supplies and DC drives).

• AC power control: Phase angle control for variable AC power supplied to loads.

• Power converters & inverters: Especially in line‑frequency stages where SCR control is effective.

 Motor Drives & Automation

• Soft start AC motor control: Limits inrush current and mechanical stress when starting motors.

• DC motor controllers: Provides regulated power for DC motors and industrial traction systems.

 Industrial & Process Applications

• Lighting and temperature control: Phase control for high‑power lamps or heaters.

• UPS and power supplies: Used in high‑reliability rectifier stages.

• Battery chargers and traction power electronics.

 Additional Uses

• Static switches and solid‑state relays for robust switching without mechanical wear.

• Temperature and process control in industrial furnaces, ovens, and heat‑work equipment.
