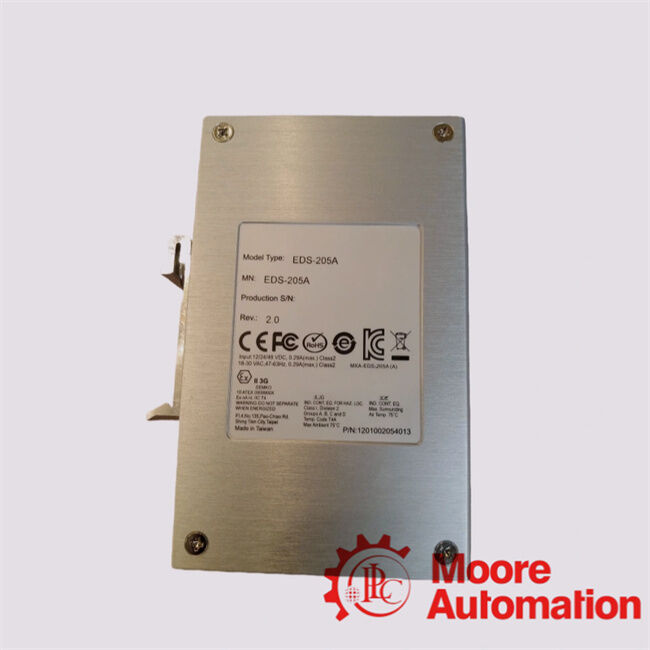

- EDS-205A industrial Ethernet switches
Description
The EDS-205A Series are industrial unmanaged Ethernet switches designed to provide reliable, plug-and-play network connectivity in harsh environments. They support 5-port 10/100 Mbps Ethernet (and
variants with additional fiber ports) with automatic speed negotiation and MDI/MDI-X detection, making them simple to deploy without configuration. Built with rugged hardware,
redundant power inputs, and industrial certifications, these switches are suited for factory floors, transportation systems, utilities, and other demanding installations.
Variants in the series include models with additional 100BaseFX fiber uplink ports (SC/ST connectors) for extended distance connections, and “-T”
models rated for wide temperature operation (-40 to 75 °C).The EDS-205A series are cost-effective, industrial-grade unmanaged Ethernet
switches that bring simple but reliable Ethernet connectivity into tough environments. With rugged hardware, redundant power, industrial
certifications, and flexible deployment options, they’re well-suited for a wide range of industrial
networking applications where ease of use and durability are priorities.
Feature And Application of EDS-205A
| Feature |
Application |
|
Core Networking
-
5 × 10/100BaseT(X) RJ45 ports with auto negotiation, full/half-duplex, and auto MDI/MDI-X support.
-
Some series variants add 100BaseFX fiber ports (multi-mode or single-mode) for long-distance links.
-
Compliant with IEEE 802.3 / 802.3u / 802.3x standards, providing stable Ethernet and flow control.
Power & Redundancy
-
12/24/48 VDC redundant dual power inputs (operating range 9.6–60 VDC), allowing connection to two independent power sources for higher uptime.
-
Overload and reverse polarity protection increases resilience against wiring issues.
Rugged Industrial Design
-
IP30 aluminum housing protects against dust and industrial contaminants.
-
Designed for harsh environments, such as hazardous locations (Class I Div. 2/ATEX), transportation (NEMA TS2/EN 50121-4), and maritime (DNV/LR/ABS/NK) certifications.
-
Available with wide temperature range options (-40 to 75 °C) for extreme conditions.
|
Industrial Automation
Used to connect PLCs, HMIs, sensors, and actuators on factory floors and in machine control systems where simplicity and durability matter.
Transportation Systems
Ideal for railway wayside networks, traffic controllers, and signaling systems that require industrial-grade Ethernet with robust EMC and vibration standards.
Utilities & Power Distribution
Provides dependable network links within power plants, substations, and distribution automation, with support for hazardous location ratings and stable operation across variable electrical conditions.
Maritime & Offshore
Suitable for shipboard networks and offshore installations, backed by maritime certifications and rugged construction.
Machine & Material Handling
Connects conveyor systems, robotic controllers, and AGVs (Automated Guided Vehicles) in logistics or manufacturing environments where maintenance-free operation is critical.
|
