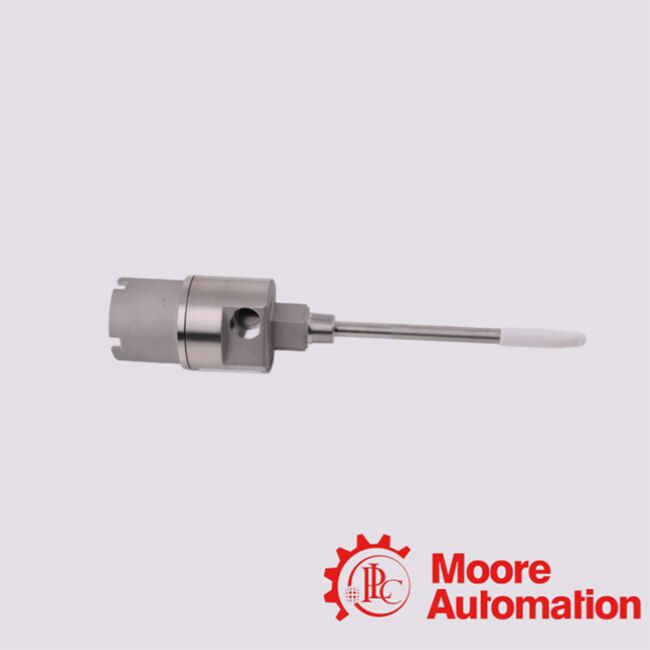

24701-28-05-00-025-04-02 Bently Nevada Proximity Probe Housing Assemblies
Description
The 24701‑28‑05‑00‑025‑04‑02 is a proximity probe housing assembly from Bently Nevada, designed to support and protect proximity probes used in industrial rotating machinery monitoring
and protection systems. It provides a rugged external mounting platform that ensures vibration and shaft position sensors can be installed, maintained, and serviced without
disassembling the machinery casing. The 24701 series housings are built around a stainless‑steel body that offers excellent
corrosion resistance and durability in harsh industrial environments.
|
FAQ
1. What is a proximity probe housing assembly?
A proximity probe housing assembly provides a secure external mount and protective enclosure for a proximity probe on rotating equipment.
It allows technicians to access and adjust the probe and cable without disassembling the machine casing.
2. What does the part number 24701‑28‑05‑00‑025‑04‑02 represent?
-
24701: Stainless‑steel probe housing base.
-
28: Includes a 3300 XL 8 mm proximity probe with connector.
-
05: 0.5 m cable length.
-
00: No standoff adapter (direct mount).
-
025: Probe sleeve penetration length (shorter penetration).
-
04: Includes one 3/4‑14 NPT plug.
-
02: Mounting thread 3/4‑14 NPT.
3. What probe works with this housing?
It is designed to house a Bently Nevada 3300 XL series proximity probe (commonly 8 mm diameter with connector)
used for vibration and position monitoring in machinery protection systems.
|
