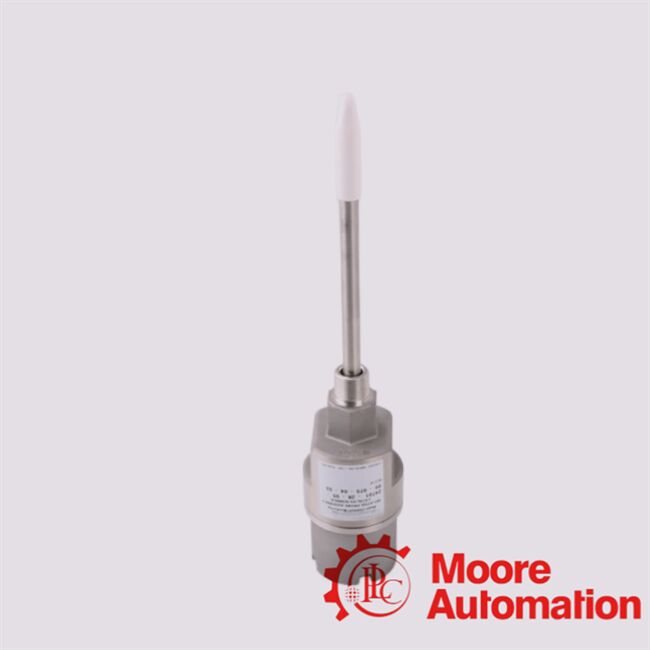

24701-34-05-30-036-04-02 Bently Nevada Proximity Probe Housing
Description
The Bently Nevada 24701‑34‑05‑30‑036‑04‑02 is a complete proximity probe housing assembly engineered for industrial machinery vibration and shaft position monitoring systems.
It is part of Bently Nevada’s 24701 series, which are rugged stainless‑steel housings designed to externally mount and protect proximity probes — such as those from the
3300 XL series — while allowing easy access for maintenance and calibration. These assemblies help protect both the probe and
cable, ensure stable gap settings, and meet industry standards for machinery protection.
|
FAQ
1. What is a proximity probe housing assembly?
A proximity probe housing assembly is a protective, externally mounted enclosure that holds a proximity vibration/displacement probe and positions it correctly relative to the machinery shaft for accurate monitoring, while shielding it from dust, moisture, and mechanical damage.
2. What does the part number mean?
-
24701: Stainless‑steel housing series.
-
34: Includes a 3300 XL 8 mm probe with connector protector.
-
05: 0.5 m cable length.
-
30: 30 mm standoff adapter included.
-
036: 3.6 in probe penetration sleeve.
-
04: One 3/4‑14 NPT plug included.
-
02: 3/4‑14 NPT mounting thread.
3. Which proximity probes is it compatible with?
It is primarily configured for Bently Nevada 3300 XL 8 mm probes, which deliver precise shaft vibration
and position signals for condition monitoring systems.
|
