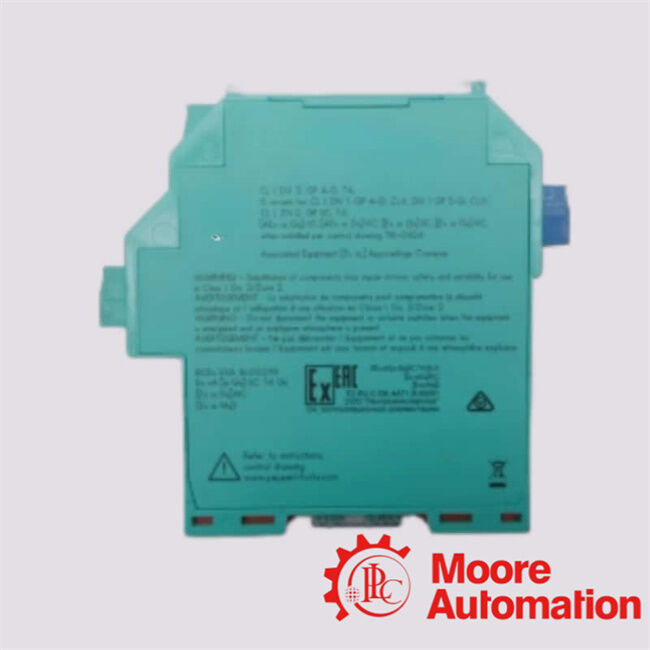

- KFD2-SOT3-EX1.LB isolated barrier
Description
The KFD2-SOT3-EX1.LB isolated barrier is a high-performance intrinsically safe switch amplifier engineered for reliable signal interfacing between hazardous and non-hazardous environments in industrial automation systems.Fundamentally, the KFD2-SOT3-EX1.LB isolated barrier is designed to transfer discrete (digital) signals—originating from field devices such as NAMUR sensors or dry contacts—located in explosive atmospheres (Zone 0/1/2) to control systems installed in safe areas, while maintaining strict energy limitation to prevent ignition hazards.
Technical Data
| Power dissipation |
≤ 1 W including maximum power dissipation in the output |
| Input |
| Connection side |
field side |
| Connection |
terminals 1+, 2+, 3- |
| Rated values |
acc. to EN 60947-5-6 (NAMUR), see manual for electrical data |
| Open circuit voltage/short-circuit current |
approx. 10 V DC / approx. 8 mA |
| Switching point/switching hysteresis |
1.2 ... 2.1 mA / approx. 0.2 mA |
| Line fault detection |
breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA |
| Pulse/Pause ratio |
min. 100 µs / min. 100 µs |
| Output |
| Connection side |
control side |
| Connection |
output I: terminals 7, 8 ; output II: terminals 8, 9 |
| Rated voltage |
30 V DC |
| Rated current |
100 mA , short-circuit protected |
| Response time |
≤ 200 µs |
| Signal level |
1-signal: (external voltage) - 3 V max. for 100 mA 0-signal: blocked output (off-state current ≤ 10 µA) |
| Output I |
signal ; Transistor |
| Output II |
signal or error message ; Transistor |
| Collective error message |
Power Rail |
| Transfer characteristics |
| Switching frequency |
≤ 5 kHz |
| Galvanic isolation |
| Input/Output |
reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Input/power supply |
reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Output/power supply |
basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
FAQ of KFD2-SOT3-EX1.LB
1. What functional role does the KFD2-SOT3-EX1.LB isolated barrier fulfill within intrinsic safety architectures?
The KFD2-SOT3-EX1.LB isolated barrier serves as a galvanic isolation interface designed to safely transfer signals from hazardous (Ex) areas to non-hazardous control systems. It ensures intrinsic safety by limiting energy transfer while maintaining signal fidelity.
2. How does the KFD2-SOT3-EX1.LB isolated barrier technically achieve galvanic isolation and signal integrity?
The KFD2-SOT3-EX1.LB isolated barrier employs transformer-based or opto-electronic isolation mechanisms to decouple input and output circuits. This architecture mitigates ground loops, suppresses noise interference, and guarantees high-precision signal transmission.
3. Why is the KFD2-SOT3-EX1.LB isolated barrier particularly suitable for hazardous area installations?
The KFD2-SOT3-EX1.LB isolated barrier is engineered in compliance with international explosion protection standards (such as ATEX and IECEx), making it suitable for Zone 0/1 applications. It restricts electrical energy to prevent ignition of explosive atmospheres.
4. What types of input/output signal configurations can the KFD2-SOT3-EX1.LB isolated barrier accommodate?
The KFD2-SOT3-EX1.LB isolated barrier is typically designed for switch/contact inputs or NAMUR sensors, converting these signals into standardized outputs compatible with PLC or DCS systems while preserving intrinsic safety parameters.
5. In what ways does the KFD2-SOT3-EX1.LB isolated barrier enhance system reliability and operational robustness?
The KFD2-SOT3-EX1.LB isolated barrier improves reliability through electrical isolation, transient protection, and diagnostic capabilities. It reduces susceptibility to electromagnetic disturbances and ensures stable operation in industrial environments.
