Description

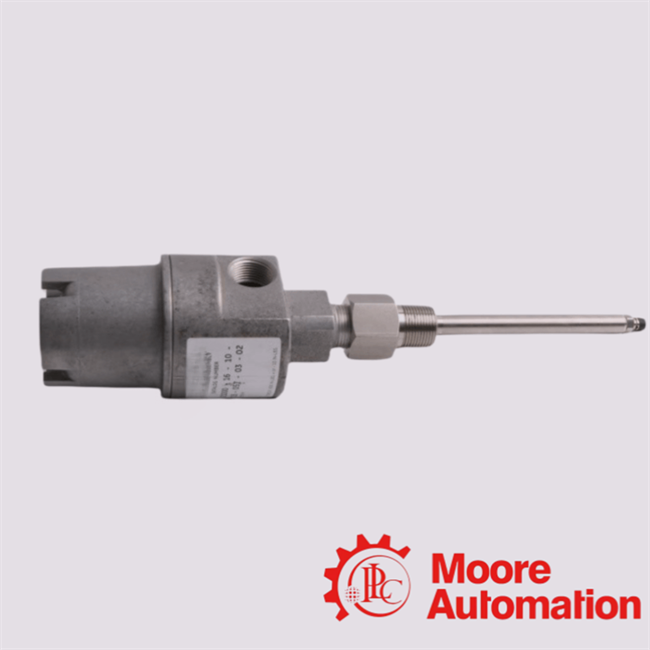

The Bently Nevada 21000-16-10-00-077-03-02 proximity probe housing assembly is a heavy-duty mechanical enclosure system designed to securely mount and protect a proximity probe used in rotating machinery condition monitoring systems. It is part of the Bently Nevada 21000 series housing architecture, widely applied in turbomachinery protection and vibration measurement solutions.The Bently Nevada 21000-16-10-00-077-03-02 proximity probe housing assembly is a precision-engineered mechanical housing solution designed to support proximity probe installations in demanding industrial environments. It ensures mechanical protection, installation accuracy, and long-term stability, forming an essential part of modern machinery protection and vibration monitoring systems.

Advanced Engineering FAQ

1. What mechanical and environmental encapsulation architecture is embodied within the 21000-16-10-00-077-03-02 to ensure probe stability in turbomachinery applications?

The 21000-16-10-00-077-03-02 employs a robust machined aluminum enclosure system with sealed probe penetration geometry, designed to maintain fixed spatial alignment of the proximity probe under high vibration, pressure, and contamination-prone industrial conditions.

2. How does the 21000-16-10-00-077-03-02 achieve structural rigidity while preserving precision probe-to-target gap integrity?

The 21000-16-10-00-077-03-02 utilizes a mechanically constrained mounting architecture with rigid standoff and threaded engagement interfaces, ensuring that the probe maintains a stable and repeatable measurement gap relative to the rotating shaft surface.

3. In what manner does the 21000-16-10-00-077-03-02 mitigate environmental ingress and contamination in harsh process environments?

The 21000-16-10-00-077-03-02 incorporates multi-stage sealing mechanisms, including elastomeric O-rings and conduit sealing interfaces, providing protection against oil mist, dust ingress, moisture penetration, and corrosive process atmospheres.

4. Why is the 21000-16-10-00-077-03-02 engineered with a specific probe penetration length configuration, and how does it affect measurement geometry?

The 21000-16-10-00-077-03-02 is designed with a precisely defined probe insertion depth (077 configuration class) to ensure optimal electromagnetic field coupling between the proximity probe and the rotating shaft, thereby maintaining linear measurement fidelity.

5. How does the 21000-16-10-00-077-03-02 support installation repeatability and alignment reproducibility across maintenance cycles?

The 21000-16-10-00-077-03-02 provides threaded mounting standardization and fixed mechanical reference planes, enabling repeatable probe positioning during installation, replacement, or field maintenance without requiring recalibration of mechanical alignment.
