Description

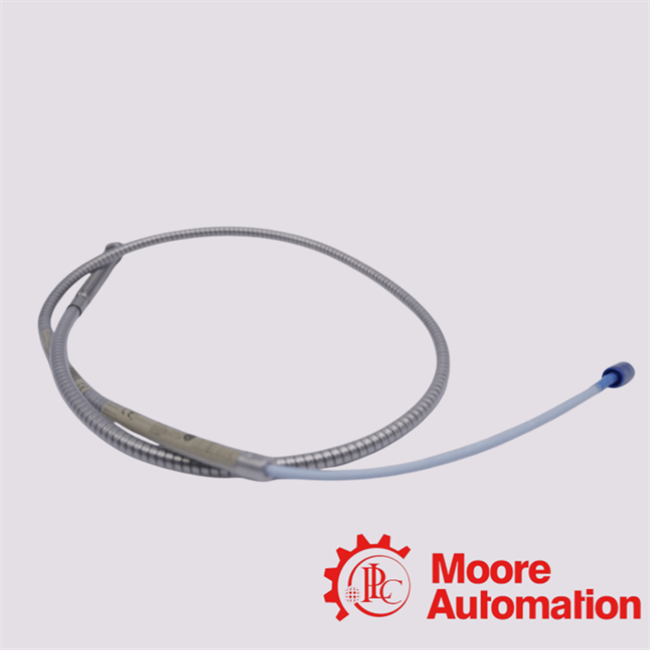

The Bently Nevada 330102-00-40-05-01-00 proximity probe is a high-precision eddy-current transducer designed for continuous monitoring of shaft vibration, radial displacement, and position measurement in critical rotating machinery. It belongs to the 3300 XL 8 mm probe series, widely used in API 670-compliant machinery protection systems.The Bently Nevada 330102-00-40-05-01-00 proximity probe is a precision-engineered industrial sensor designed for continuous, high-resolution monitoring of rotating machinery dynamics. Its integration into the 3300 XL ecosystem ensures accurate displacement measurement, system-level calibration consistency, and high operational reliability in mission-critical applications.

Advanced Engineering FAQ

1. What eddy-current electromagnetic induction framework is implemented within the 330102-00-40-05-01-00 to achieve non-contact displacement transduction?

The 330102-00-40-05-01-00 employs a high-frequency eddy-current field excitation mechanism, where variations in conductive target proximity modulate coil impedance, producing a calibrated voltage output proportional to shaft displacement.

2. How does the 330102-00-40-05-01-00 ensure metrological linearity and repeatability across its defined measurement envelope?

The 330102-00-40-05-01-00 maintains measurement linearity through factory-calibrated coil geometry optimization and system-level matching with the Proximitor sensor, ensuring a stable voltage-to-gap transfer function throughout the operational range.

3. Why is the 330102-00-40-05-01-00 engineered with an 8 mm probe architecture, and how does this influence electromagnetic field distribution fidelity?

The 330102-00-40-05-01-00 utilizes an 8 mm probe geometry to achieve an optimal balance between field penetration depth, spatial resolution, and target coupling efficiency, minimizing nonlinear edge effects in shaft vibration measurements.

4. How does the 330102-00-40-05-01-00 integrate within the 3300 XL transducer ecosystem to guarantee system-level interchangeability?

The 330102-00-40-05-01-00 is part of a three-component calibrated measurement chain (probe, extension cable, Proximitor), ensuring impedance matching and eliminating the need for field recalibration upon component replacement.

5. What configuration intelligence is embedded within the part number 330102-00-40-05-01-00, and how does it define mechanical installation parameters?

The 330102-00-40-05-01-00 code encodes mechanical and electrical configuration parameters such as case length, cable length, connector type, and mounting geometry, enabling deterministic application-specific selection.
