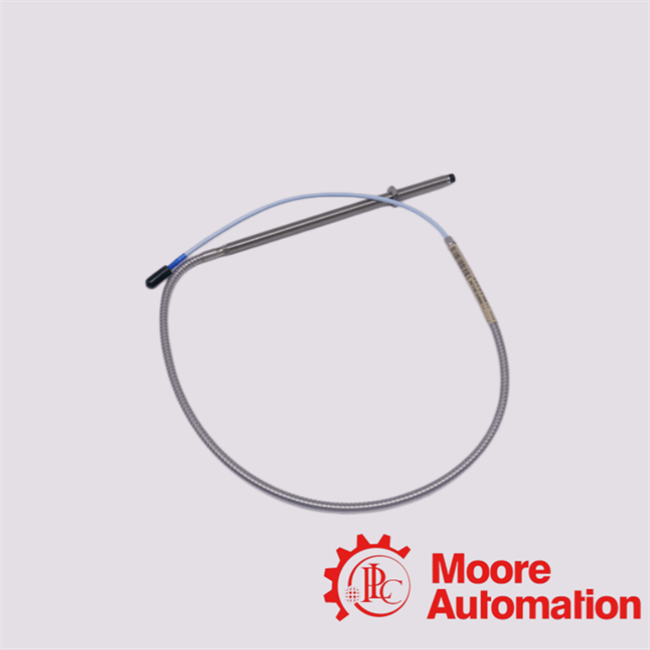

330104-00-20-10-02-05 Bently Nevada 3300 XL 8mm proximity probe
Description
The Bently Nevada 330104-00-20-10-02-05 proximity probe is a high-reliability eddy-current proximity transducer designed for precision monitoring of shaft vibration, radial displacement, and rotor position in critical rotating machinery systems such as turbines, compressors, and pumps.
It is part of the Bently Nevada 3300 XL 8 mm transducer family, widely used in API 670-compliant machinery protection and condition monitoring systems, where long-term stability, interchangeability, and measurement accuracy are essential.The Bently Nevada 330104-00-20-10-02-05 proximity probe is a precision-engineered industrial proximity transducer designed for continuous monitoring of rotating machinery dynamics, providing reliable high-resolution vibration and displacement data for critical machinery protection and diagnostic systems.
Advanced Engineering FAQ
1. What eddy-current electromagnetic induction architecture is implemented within the 330104-00-20-10-02-05 to enable non-contact displacement metrology?
The 330104-00-20-10-02-05 employs a high-frequency eddy-current field excitation system, where variations in conductive target proximity alter probe coil impedance, producing a calibrated linear voltage output proportional to shaft displacement via the Proximitor interface.
2. How does the 330104-00-20-10-02-05 maintain metrological linearity and repeatability across its calibrated measurement envelope?
The 330104-00-20-10-02-05 ensures linear response behavior through precision-engineered coil geometry, controlled electromagnetic field distribution, and system-level calibration matching, enabling consistent voltage-to-gap conversion within the 3300 XL architecture.
3. Why is the 330104-00-20-10-02-05 designed around an 8 mm probe geometry, and how does this influence field coupling efficiency?
The 330104-00-20-10-02-05 utilizes an 8 mm sensing diameter to optimize electromagnetic field penetration depth, spatial resolution, and target coupling stability, thereby minimizing nonlinear edge effects in rotating shaft displacement measurement.
4. How does the 330104-00-20-10-02-05 integrate within the 3300 XL transducer ecosystem to guarantee system interchangeability?
The 330104-00-20-10-02-05 functions as part of a calibrated three-component system (probe, extension cable, Proximitor sensor), ensuring impedance matching and eliminating the need for field recalibration when components are replaced.
5. What configuration semantics are encoded within the designation 330104-00-20-10-02-05, and how do they define installation constraints?
The 330104-00-20-10-02-05 encoding represents probe series identity, mechanical case length configuration (20 class), cable length (10 = 1.0 m), connector architecture (02 ClickLoc coaxial), and certification package (05 approval variant), enabling deterministic installation selection.
