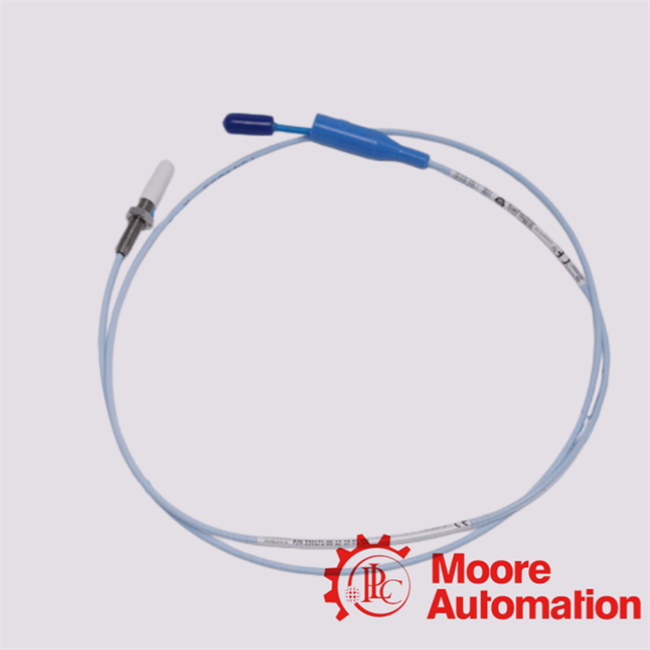

330171-00-10-10-02-05 Bently Nevada 3300XL Cable Proximity Probe
Description
The Bently Nevada 330171-00-10-10-02-05 proximity probe is a non-contact eddy-current displacement transducer within the 3300 XL 8 mm probe family, engineered for high-precision monitoring of shaft vibration, radial displacement, and axial position in critical rotating machinery.
Advanced Engineering FAQ
1. What eddy-current electromagnetic transduction mechanism is implemented within the 330171-00-10-10-02-05 to enable non-contact displacement measurement?
The 330171-00-10-10-02-05 utilizes a high-frequency eddy-current field excitation architecture, where conductive target proximity modulates coil impedance, generating a calibrated voltage output proportional to shaft displacement.
2. How does the 330171-00-10-10-02-05 ensure metrological linearity and system-level repeatability within the 3300 XL ecosystem?
The 330171-00-10-10-02-05 maintains linearity through factory-calibrated coil geometry and system-matched Proximitor and cable assembly integration, ensuring stable voltage-to-gap conversion without field recalibration.
3. Why is the 330171-00-10-10-02-05 engineered with an 8 mm probe architecture, and how does it influence electromagnetic field coupling fidelity?
The 330171-00-10-10-02-05 leverages an 8 mm sensing geometry to optimize field penetration depth, spatial resolution, and target coupling stability, minimizing nonlinear distortion in rotor vibration measurements.
4. How does the 330171-00-10-10-02-05 integrate within a complete 3300 XL transducer chain for machinery protection systems?
The 330171-00-10-10-02-05 functions within a three-component calibrated measurement system (probe, extension cable, Proximitor), ensuring impedance matching and system-wide signal consistency.
5. What configuration semantics are encoded within the 330171-00-10-10-02-05 designation, and how do they define installation constraints?
The 330171-00-10-10-02-05 encodes probe platform identity, mechanical configuration class, cable length specification, connector architecture, and certification package, enabling deterministic installation selection.
