Description

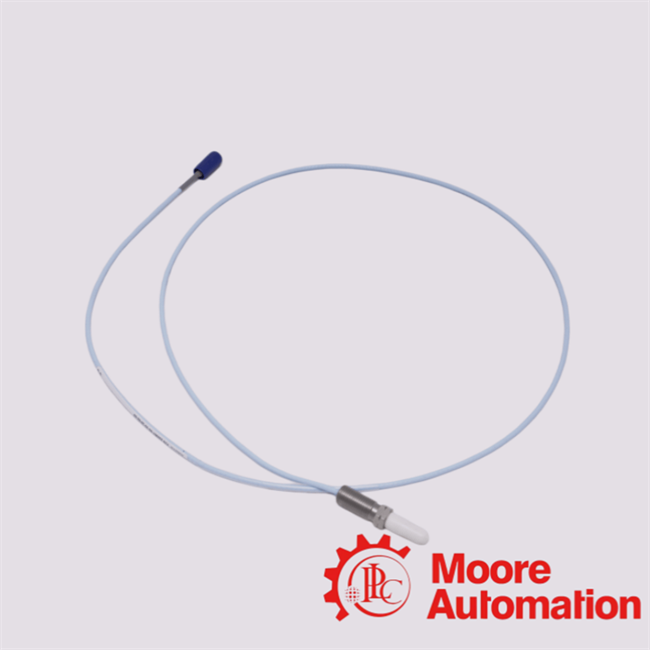

The Bently Nevada 330907-05-30-10-12 probe sensor is a non-contact eddy-current proximity transducer designed for high-precision measurement of shaft vibration, radial displacement, and position monitoring in rotating machinery systems.It belongs to the 3300 XL NSv (Near Shaft Vibration) probe family, which is optimized for applications involving smaller shaft diameters, tight mounting constraints, and high-resolution dynamic monitoring in turbomachinery, compressors, and industrial rotating equipment.

Advanced Engineering FAQ

1. What eddy-current electromagnetic transduction mechanism is implemented within the 330907-05-30-10-12 to enable non-contact displacement measurement?

The 330907-05-30-10-12 utilizes a high-frequency eddy-current field excitation system, where conductive target proximity modifies probe coil impedance, producing a calibrated voltage output proportional to shaft displacement.

2. How does the 330907-05-30-10-12 ensure metrological linearity within NSv (Near Shaft Vibration) measurement environments?

The 330907-05-30-10-12 maintains linearity through optimized coil geometry and NSv-specific calibration mapping, ensuring accurate voltage-to-gap conversion in small-shaft, tight-clearance applications.

3. Why is the 330907-05-30-10-12 engineered within the NSv probe architecture rather than the standard 3300 XL 8 mm platform?

The 330907-05-30-10-12 is designed for restricted mechanical envelopes and reduced shaft diameter applications, where standard 8 mm probes cannot achieve optimal electromagnetic coupling or physical installation feasibility.

4. How does the 330907-05-30-10-12 integrate into a complete proximity transducer chain for machinery protection systems?

The 330907-05-30-10-12 operates within a matched three-component system (probe, extension cable, Proximitor), ensuring impedance alignment and system-level calibration consistency.

5. What configuration semantics are encoded within the 330907-05-30-10-12 designation, and how do they define installation constraints?

The 330907-05-30-10-12 encodes NSv probe family identity, mechanical configuration class, cable length specification, and connector/approval package, enabling deterministic selection for compact machinery installations.
