Description

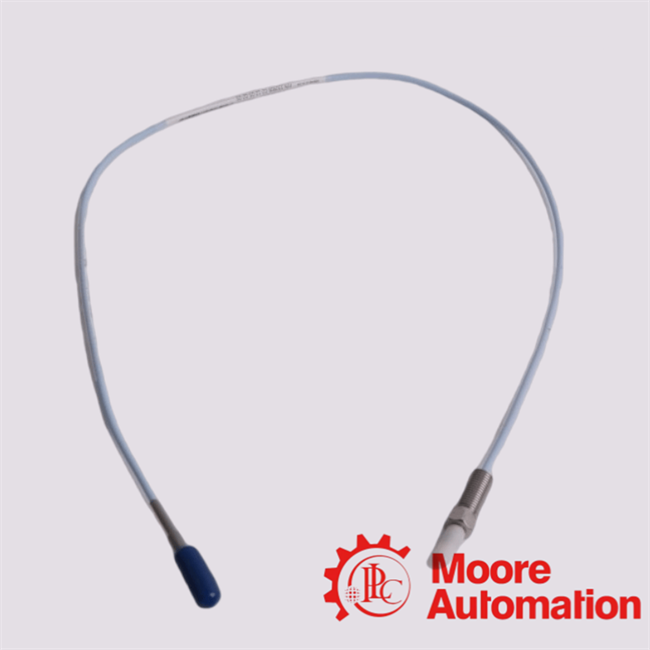

The Bently Nevada 330906-02-12-10-12-05 proximity probe is a non-contact eddy-current displacement sensor within the 3300 XL NSv (Near Shaft Vibration) probe family, engineered for high-resolution measurement of shaft vibration, radial displacement, and position monitoring in compact rotating machinery systems.It is designed for applications where standard 8 mm probes are physically constrained or electromagnetically suboptimal, particularly in small-diameter shafts and tight installation geometries.

Advanced Engineering FAQ

1. What eddy-current electromagnetic transduction mechanism is implemented within the 330906-02-12-10-12-05 to enable non-contact displacement sensing?

The 330906-02-12-10-12-05 employs a high-frequency eddy-current field excitation system, where conductive target proximity modulates probe coil impedance, generating a calibrated voltage proportional to shaft displacement.

2. How does the 330906-02-12-10-12-05 ensure metrological linearity in NSv-class small-shaft measurement environments?

The 330906-02-12-10-12-05 maintains linearity through NSv-optimized coil geometry and system-level calibration matching with Proximitor electronics, ensuring stable voltage-to-gap conversion in constrained geometries.

3. Why is the 330906-02-12-10-12-05 engineered within the NSv probe architecture rather than the standard 3300 XL 8 mm platform?

The 330906-02-12-10-12-05 is designed for compact mechanical envelopes and reduced shaft diameter applications, where standard 8 mm probes cannot achieve optimal electromagnetic coupling or physical installation feasibility.

4. How does the 330906-02-12-10-12-05 integrate into a complete 3300 XL NSv transducer chain for machinery protection systems?

The 330906-02-12-10-12-05 operates within a three-component calibrated system (probe, extension cable, Proximitor), ensuring impedance matching and system-wide signal consistency.

5. What configuration semantics are encoded within the 330906-02-12-10-12-05 designation, and how do they define installation constraints?

The 330906-02-12-10-12-05 encodes NSv probe family identity, mechanical configuration class, cable length specification, connector architecture, and certification package, enabling deterministic installation selection.
