Description

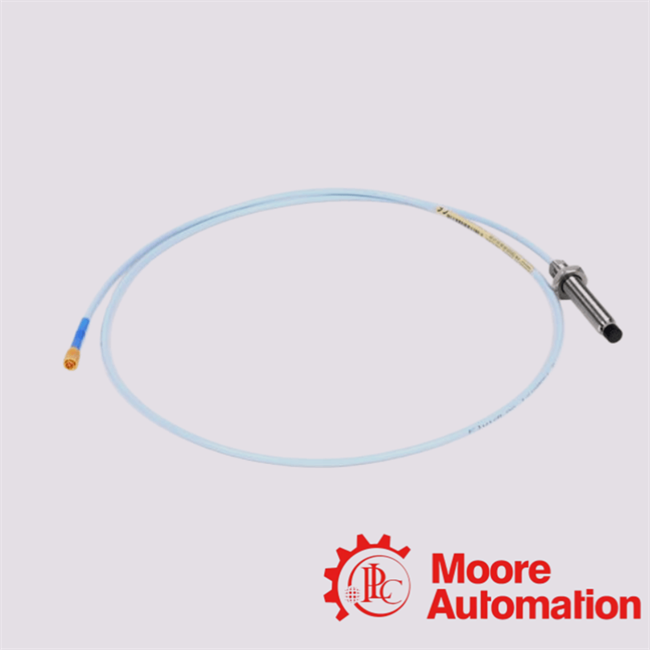

The 330194-15-25-50-05 Bently Nevada 3300 XL 8mm Proximity Probe is a high-precision, non-contact eddy-current sensor engineered for continuous monitoring of shaft vibration, displacement, and position in critical rotating machinery. It belongs to the renowned 3300 XL series, widely recognized for its reliability, accuracy, and compliance with industrial standards.

Advanced Engineering FAQ

1. What fundamental sensing principle governs the operation of 330194-15-25-50-05 within eddy-current proximity measurement systems?

The 330194-15-25-50-05 operates based on the eddy-current principle, wherein an electromagnetic field generated by the probe interacts with a conductive target surface. Variations in distance modulate the impedance of the coil, producing an output voltage proportional to displacement, enabling both static (position) and dynamic (vibration) measurements.

2. How does the structural configuration of 330194-15-25-50-05 influence its installation adaptability and mechanical robustness?

The 330194-15-25-50-05 features an M10×1 threaded stainless-steel probe body with armored cabling, ensuring superior mechanical integrity and resistance to industrial stressors. Its configurable dimensions—such as 150 mm unthreaded length and 250 mm case length—facilitate precise installation in constrained or high-vibration environments.

3. Why is the 5-meter integrated cable design of 330194-15-25-50-05 critical for system compatibility and signal integrity?

The 330194-15-25-50-05 incorporates a 5.0-meter triaxial cable, engineered for impedance matching (75 Ω) and noise immunity. This fixed-length architecture ensures compatibility with specific Proximitor sensors and minimizes signal attenuation, thereby preserving measurement fidelity across extended distances.

4. What voltage and power constraints must be considered when deploying 330194-15-25-50-05 in industrial monitoring systems?

The 330194-15-25-50-05 requires a regulated supply between −17.5 Vdc and −26 Vdc, with optimal operation near −24 Vdc. Deviations beyond this range may compromise linearity and measurement accuracy, particularly in precision vibration monitoring applications.

5. How does 330194-15-25-50-05 maintain measurement stability under fluctuating electrical conditions?

The 330194-15-25-50-05 exhibits low supply sensitivity (<2 mV/V), meaning output variation due to input voltage fluctuation is negligible. This characteristic ensures consistent signal output even in electrically noisy industrial environments.
