Description

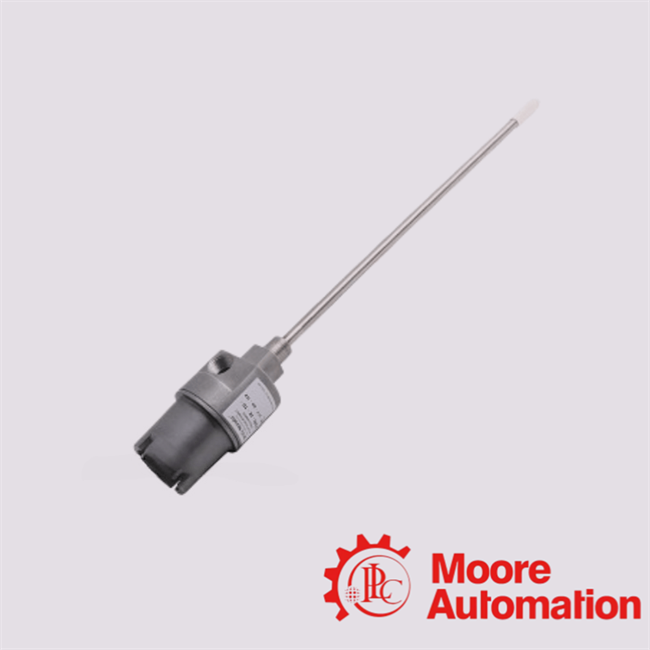

The 24701-34-05-00-043-03-02 is a highly integrated PROXPAC XL proximity transducer assembly developed by Bently Nevada, designed for advanced rotating machinery protection and condition monitoring applications. It represents a self-contained eddy-current sensing system, combining probe housing, proximity probe, and Proximitor signal conditioning into a single compact unit.The 24701-34-05-00-043-03-02 Bently Nevada PROXPAC XL Proximity Transducer is a fully integrated, high-reliability displacement sensing system that combines mechanical housing, proximity probe, and signal conditioning electronics into a single robust unit.It is specifically engineered to deliver precision measurement, environmental durability, and simplified system architecture, making it an essential component in modern industrial machinery monitoring and protection ecosystems.

Advanced Engineering FAQ

1. What is the integrated electromechanical sensing architecture embodied within the 24701-34-05-00-043-03-02 PROXPAC XL system?

The 24701-34-05-00-043-03-02 is engineered as a fully integrated proximity transduction assembly, combining an eddy-current probe, embedded Proximitor signal conditioning electronics, and a protective housing into a monolithic sensing unit, thereby eliminating the need for external extension cabling and discrete signal converters.

2. How does the 24701-34-05-00-043-03-02 achieve high-resolution non-contact displacement measurement in rotating machinery applications?

The 24701-34-05-00-043-03-02 utilizes a high-frequency eddy-current transduction principle, wherein electromagnetic field interactions between the probe tip and the conductive shaft surface generate a linearized analog voltage output proportional to displacement, ensuring precise vibration and position monitoring.

3. Why does the 24701-34-05-00-043-03-02 adopt an integrated Proximitor design rather than a distributed signal conditioning topology?

The 24701-34-05-00-043-03-02 incorporates an embedded Proximitor module within the housing, which significantly reduces signal attenuation, eliminates impedance mismatch risks associated with long extension cables, and enhances signal-to-noise ratio (SNR) in electrically noisy industrial environments.

4. How does the 24701-34-05-00-043-03-02 maintain measurement linearity and calibration stability across varying air-gap conditions?

The 24701-34-05-00-043-03-02 is factory-calibrated with precision-defined probe-target gap response curves, ensuring that the system operates within a linear measurement zone, thereby minimizing non-linearity errors and preserving displacement accuracy under dynamic shaft movement.

5. What material science considerations influence the enclosure design of the 24701-34-05-00-043-03-02?

The 24701-34-05-00-043-03-02 employs a glass-reinforced polyphenylene sulfide (PPS) enclosure, which offers exceptional resistance to corrosion, chemical exposure, and thermal degradation, while also incorporating conductive properties for electrostatic discharge (ESD) mitigation.
