TC-205-01 I/O Companion Slot I/O Companion Slot Cable Internal

Description

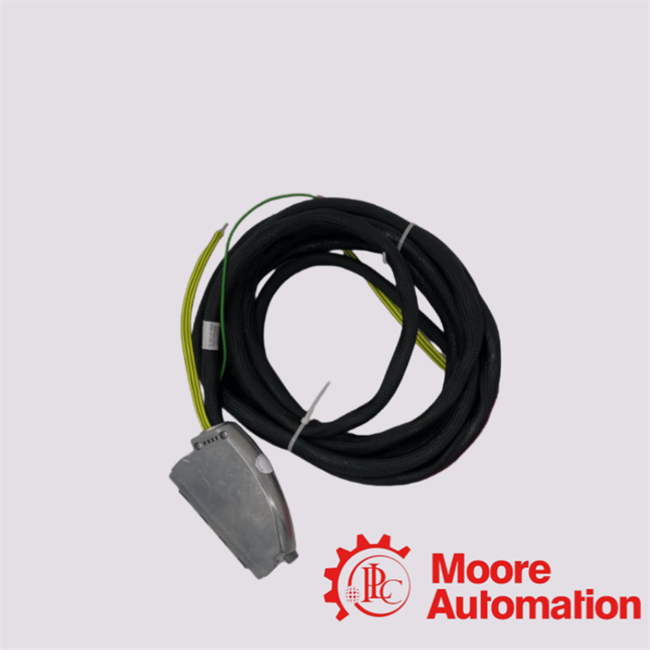

 The TC-205-01 I/O Companion Slot Cable (Internal) is a multi-core industrial interconnection cable assembly designed for the Trusted® Safety Instrumented System (SIS) architecture. It provides a deterministic electrical link between Output I/O modules and Field Termination Assemblies (FTAs) within control cabinets.This cable belongs to the Companion Slot Output family (TC-205 series) and is specifically engineered for 24 V DC / 120 V DC digital output applications and analog output signal routing in high-integrity automation systems.

Technical Overview

FAQ of   TC-205-01

Q1: What is the fundamental signal transport architecture implemented by the TC-205-01 within a high-integrity Safety Instrumented System (SIS) topology?

The TC-205-01 interconnection cable implements a multi-channel deterministic signal transport architecture, enabling structured routing of analog, digital, and low-level control signals between I/O modules and Field Termination Assemblies (FTAs) within Trusted system environments.

Q2: How does the TC-205-01 ensure electromagnetic compatibility and signal preservation in high-density industrial control cabinets?

The TC-205-01 cable employs a shielded multi-core conductor design with controlled grounding topology, effectively mitigating electromagnetic interference (EMI), minimizing crosstalk, and maintaining signal integrity in electrically noisy SIS cabinet environments.

Q3: In what manner does the TC-205-01 support high-reliability module-to-termination interfacing within Trusted system architectures?

The TC-205-01 cable functions as a point-to-point I/O interconnect medium, ensuring precise electrical mapping between control modules and FTAs, thereby supporting stable, repeatable, and fault-tolerant signal transmission pathways.

Q4: What electrical performance envelope governs the TC-205-01 under industrial signal transmission conditions?

The TC-205-01 interconnection cable is designed for low-voltage control and signal-level transmission, supporting multi-channel routing with controlled impedance characteristics to ensure minimal attenuation and stable voltage propagation across cabinet distances.

Q5: How does the TC-205-01 maintain signal fidelity across mixed analog and digital I/O domains?

The TC-205-01 cable utilizes a structured conductor layout with optimized channel separation, reducing inter-signal interference and ensuring high-fidelity transmission of both continuous analog signals and discrete digital states.
