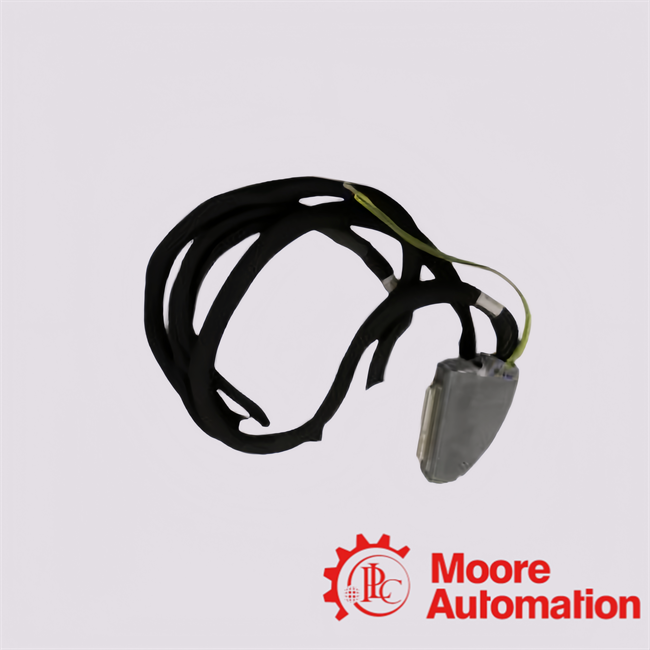

- TC-306-02 Input Smart Slot Jumper Cable
Description
The TC-306-02 is a Smart Slot Input Jumper Cable used within the Trusted / ICS Triplex safety control system architecture, designed to establish high-integrity interconnection between primary I/O module slots and the shared Smart Slot (secondary slot) in redundant and hot-swappable control configurations.
It is specifically engineered to support module redundancy, rapid fault replacement, and high-density I/O system architectures in safety-critical industrial automation environments.
Technical Overview
| Electrical & Signal Characteristics |
| Working Electrical Limits (system family reference): |
- Max voltage: ~60 V system class
- Max current: up to 2 A per channel (TC cable family specification)
|
| Signal Integrity Design: |
- Low-resistance copper conductors
- High noise immunity for industrial environments
- Stable logic-level signal transfer between slots
|
| Electrical Functionality: |
- Output signal routing from I/O module to FTA
- Field power return integration (via auxiliary cable cores in full system assembly)
|
| Length & Configuration |
| Standard Length Designation: |
Variable (XX format in TC-306 family) |
| Typical Configurations: |
- 2.5 m standard variant (common reference model)
- Other lengths available depending on system design
|
| 6M variant: |
Not typical for TC-306 family; system usually optimized for chassis proximity connections
|
FAQ of TC-306-02
1. What are the system-level redundancy orchestration mechanisms enabled by TC-306-02 within Trusted Smart Slot input architectures?
This question addresses how TC-306-02 enables shared-slot redundancy logic, allowing a standby input module to serve multiple primary input channels through Smart Slot interconnection.
2. How does TC-306-02 facilitate hot-swappable input module replacement without compromising runtime process continuity?
This explores how TC-306-02 supports module exchange under live system conditions while maintaining uninterrupted I/O signal integrity.
3. In what manner does TC-306-02 establish electrical and logical synchronization between primary input modules and the Smart Slot backplane?
This focuses on how TC-306-02 ensures coherent signal mapping and synchronized communication within Trusted rack architectures.
4. What electromagnetic interference mitigation strategies are embedded in TC-306-02 to preserve digital input signal integrity in high-noise industrial environments?
This examines shielding design, grounding strategy, and noise rejection performance of TC-306-02.
5. How does TC-306-02 optimize fault-tolerant input acquisition in safety instrumented systems (SIS) with high availability requirements?
This explores how TC-306-02 contributes to system resilience by maintaining input continuity during module failure scenarios.
