Description

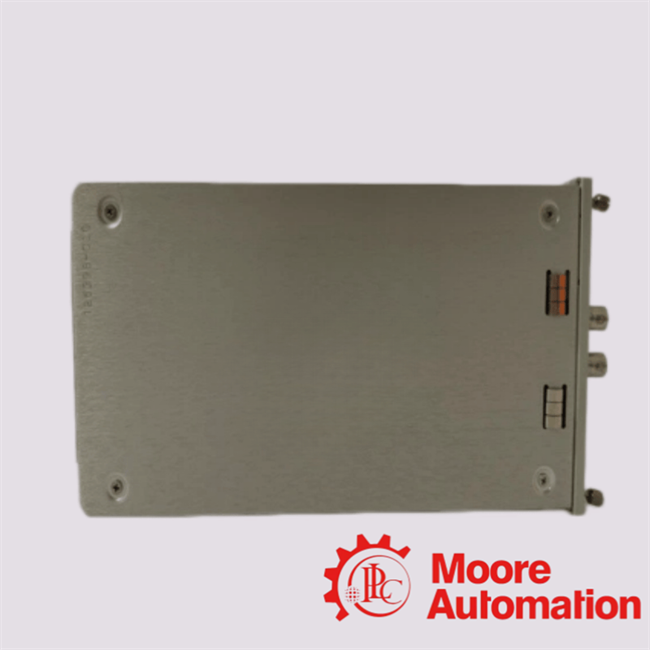

The 3500/25 (149369-01 + 135473-01) Enhanced Keyphasor Module is a high-precision, dual-channel signal conditioning and phase reference module designed for integration within the Bently Nevada 3500 Machinery Protection System.It functions as a critical rotational reference interface, acquiring input signals from proximity probes or magnetic pickups and converting them into deterministic digital Keyphasor signals. These signals represent precise shaft angular position and are essential for synchronous vibration analysis, vector measurements, and advanced condition monitoring.Architecturally, the module is implemented as a half-height, two-channel card, allowing efficient rack utilization while maintaining high signal fidelity. It supports both isolated and non-isolated I/O configurations (via 135473-01 I/O module), enabling deployment in complex industrial environments where signal isolation and system integrity are required.The 3500/25 (149369-01 + 135473-01) enhances traditional Keyphasor functionality by offering expanded signal processing capabilities, improved low-speed performance, and compatibility with legacy systems. It is fully backward-compatible with earlier modules while introducing advanced features such as multi-event signal handling and configurable triggering.In high-reliability applications such as turbines, compressors, and generators, the module provides accurate once-per-turn or multi-event-per-turn timing signals, enabling precise measurement of rotational speed, phase angle, and vibration vector parameters. It is also suitable for Triple Modular Redundant (TMR) architectures, where dual modules operate in parallel to ensure redundancy and fault tolerance.

Technical Data Parameters

Advanced Engineering FAQ

1. What intrinsic functional role does the 3500/25 (149369-01 + 135473-01) fulfill within a high-integrity machinery protection system?

The 3500/25 (149369-01 + 135473-01) operates as a Keyphasor® module, delivering precise phase reference signals essential for synchronous vibration analysis. It enables accurate correlation between shaft rotational position and dynamic vibration data, thereby enhancing diagnostic fidelity in critical rotating equipment.

2. How does the 3500/25 (149369-01 + 135473-01) ensure signal determinism and temporal accuracy in rotational speed measurements?

The 3500/25 (149369-01 + 135473-01) employs high-resolution signal conditioning and zero-crossing detection algorithms to maintain deterministic timing. Its architecture minimizes jitter and latency, ensuring that phase-triggered events align consistently with shaft rotational markers.

3. Why is the dual-channel architecture of the 3500/25 (149369-01 + 135473-01) considered advantageous for redundancy and reliability?

The 3500/25 (149369-01 + 135473-01) integrates two independent Keyphasor input channels, enabling redundant signal acquisition. This duality enhances system resilience by allowing continuous operation even in the event of a single channel failure, thus supporting high-availability monitoring environments.

4. What types of transducer inputs are compatible with the 3500/25 (149369-01 + 135473-01), and how does it accommodate diverse signal modalities?

The 3500/25 (149369-01 + 135473-01) supports a variety of input signals, including proximity probes and magnetic pickups. Its configurable signal conditioning circuitry allows adaptation to differing voltage levels, waveform characteristics, and installation geometries.

5. How does the 3500/25 (149369-01 + 135473-01) contribute to advanced vibration analysis methodologies such as orbit and Bode plot generation?

By providing a stable and accurate phase reference, the 3500/25 (149369-01 + 135473-01) enables sophisticated analytical techniques like orbit plotting, polar vector analysis, and Bode diagrams. These methodologies rely on phase coherence, which the module ensures with high precision.
