Description

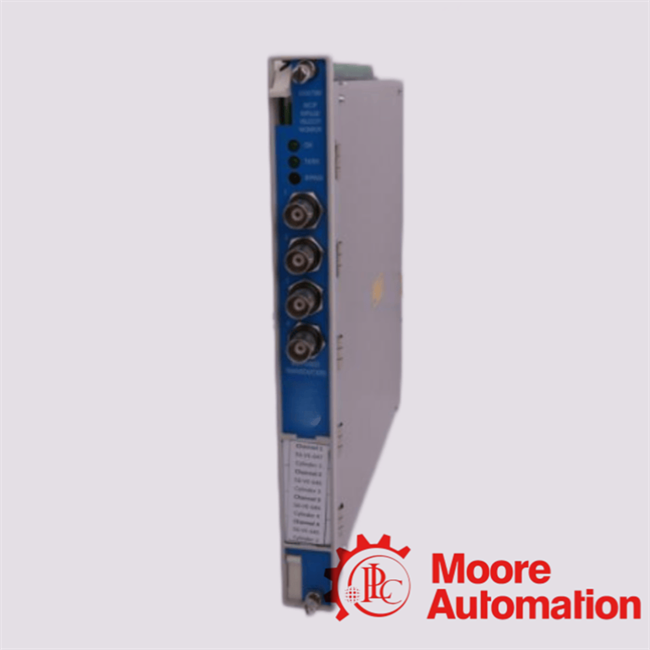

The 3500/70M (176449-09 + 135489-01) is a specialized Reciprocating Impulse Velocity Monitor designed for high-precision condition monitoring and protection of reciprocating compressors within the Bently Nevada 3500 Machinery Protection System.The 3500/70M (176449-09 + 135489-01) is engineered to monitor crankcase and crosshead vibration by acquiring signals from seismic transducers (such as accelerometers or velocity sensors), conditioning these signals, and converting them into meaningful parameters such as impulse acceleration, velocity, and low-frequency reciprocating motion.Each of its four channels can be independently configured via the 3500 Rack Configuration Software, enabling flexible deployment for various measurement modes. Channels are typically grouped in pairs, allowing simultaneous monitoring of different vibration characteristics within the same module.A core function of the 3500/70M (176449-09 + 135489-01) is machinery protection. It continuously compares measured parameters against user-defined Alert and Danger alarm setpoints, enabling rapid detection of abnormal mechanical behavior such as impact events, looseness, or wear in reciprocating machinery.The module is particularly optimized for impulsive and non-periodic vibration signatures, which are characteristic of reciprocating compressors. Its advanced signal processing ensures accurate capture of transient mechanical events, making it indispensable for predictive maintenance strategies and operational safety.Designed for harsh industrial environments, the module features robust construction, high noise immunity, and reliable long-term performance. It integrates seamlessly into the 3500 rack system, providing synchronized data acquisition and centralized monitoring.

Technical Data Parameters

Advanced Engineering FAQ

1. What fundamental measurement doctrine underpins the operational paradigm of the 3500/70M (176449-09 + 135489-01) within reciprocating machinery protection systems?

The 3500/70M (176449-09 + 135489-01) is architected as a Recip Impulse Velocity Monitor, engineered to quantify dynamic vibration and rod drop parameters in reciprocating compressors. It translates high-frequency acceleration inputs into impulse velocity metrics, enabling precise condition assessment of mechanical components.

2. How does the 3500/70M (176449-09 + 135489-01) execute high-resolution signal processing for impulsive vibration phenomena?

The 3500/70M (176449-09 + 135489-01) employs advanced digital signal processing algorithms, including integration and filtering techniques, to convert raw accelerometer signals into meaningful impulse velocity values. This ensures accurate characterization of transient mechanical events.

3. Why is the 3500/70M (176449-09 + 135489-01) particularly suited for reciprocating compressor diagnostics compared to conventional vibration monitors?

The 3500/70M (176449-09 + 135489-01) is specifically optimized for non-continuous, impact-based vibration patterns typical of reciprocating machinery. Its ability to capture peak dynamic responses and correlate them with mechanical impacts provides superior diagnostic insight over standard RMS-based monitoring.

4. What types of transducers are compatible with the 3500/70M (176449-09 + 135489-01), and how does it accommodate their signal characteristics?

The 3500/70M (176449-09 + 135489-01) supports industrial accelerometers designed for high-frequency response. It integrates configurable input conditioning to match sensor sensitivity, ensuring accurate signal acquisition across varying installation conditions.

5. How does the 3500/70M (176449-09 + 135489-01) facilitate rod drop measurement, and why is this parameter critical?

The 3500/70M (176449-09 + 135489-01) incorporates displacement measurement capability to monitor piston rod position relative to the cylinder. This allows early detection of wear or misalignment conditions, which are critical indicators of impending mechanical failure.
