Description

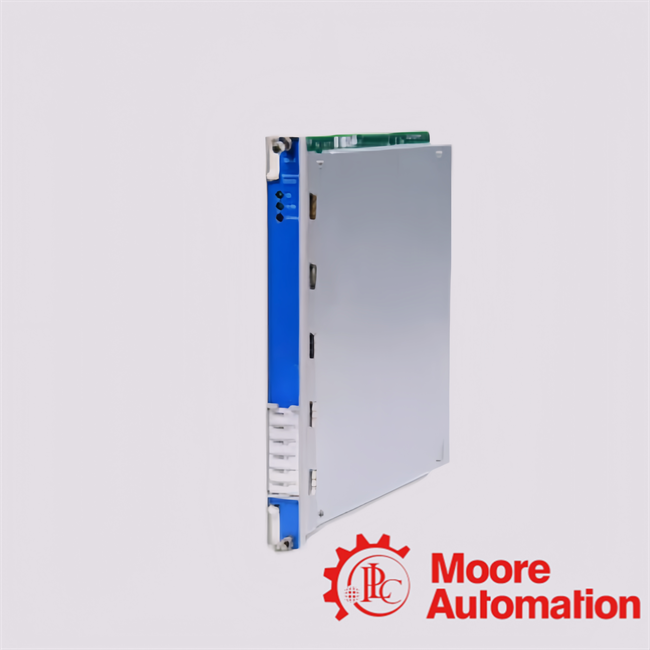

The 3500/70M (176449-09 + 135489-03) is a high-performance 4-channel Reciprocating Impulse Velocity Monitor within the Bently Nevada 3500 Machinery Protection System, specifically engineered for advanced diagnostics and protection of reciprocating compressors.Each channel is independently configurable through 3500 Rack Configuration Software, allowing flexible assignment of measurement functions in channel pairs. This architecture enables simultaneous multi-parameter monitoring of compressor subsystems, improving diagnostic resolution and machinery visibility.A key functional objective of the 3500/70M (176449-09 + 135489-03) is to provide real-time machinery protection and condition intelligence by continuously comparing measured vibration parameters against user-defined Alert and Danger setpoints. This enables early detection of abnormal mechanical conditions such as piston slap, rod drop anomalies, looseness, and structural fatigue.The inclusion of the 135489-03 I/O module (4× Velomitor configuration with internal barriers) enhances electrical isolation, signal integrity, and safe integration in industrial environments with high electromagnetic interference.Overall, the 3500/70M (176449-09 + 135489-03) represents a mission-critical diagnostic node for reciprocating compressor reliability systems, combining high-speed signal processing, configurable analytics, and robust industrial-grade protection.

Technical Data Parameters

Advanced Engineering FAQ

1. What core functional philosophy governs the operational behavior of the 3500/70M (176449-09 + 135489-03) within reciprocating machinery protection frameworks?
The 3500/70M (176449-09 + 135489-03) is engineered as a Reciprocating Impulse Velocity Monitor, designed to capture and quantify transient vibration phenomena in reciprocating compressors. It transforms raw seismic inputs into impulse velocity metrics, enabling precise condition evaluation of mechanical subsystems.

2. How does the 3500/70M (176449-09 + 135489-03) implement advanced signal conditioning to accurately resolve impulsive vibration signatures?
The 3500/70M (176449-09 + 135489-03) utilizes sophisticated digital signal processing techniques, including integration, band-pass filtering, and peak detection algorithms, to convert acceleration signals into meaningful velocity-based parameters while preserving transient characteristics.

3. Why is the 3500/70M (176449-09 + 135489-03) particularly optimized for non-periodic and impact-driven vibration analysis?
Unlike conventional RMS-based monitors, the 3500/70M (176449-09 + 135489-03) is specifically tuned to detect high-energy impulse events typical of reciprocating machinery. Its architecture emphasizes peak capture and time-domain analysis, which are critical for identifying mechanical impacts, looseness, and wear.

4. What categories of transducers can be interfaced with the 3500/70M (176449-09 + 135489-03), and how does it accommodate their dynamic characteristics?
The 3500/70M (176449-09 + 135489-03) supports seismic sensors such as accelerometers and velocity transducers. It provides configurable input conditioning to match sensor sensitivity and frequency response, ensuring accurate data acquisition across diverse operating conditions.

5. How does the 3500/70M (176449-09 + 135489-03) enable multi-parameter monitoring within a single module architecture?
The 3500/70M (176449-09 + 135489-03) allows each channel to be independently configured to measure parameters such as impulse acceleration, peak velocity, and low-frequency reciprocating motion. This multi-modal capability enhances diagnostic depth without increasing hardware complexity.
