Description

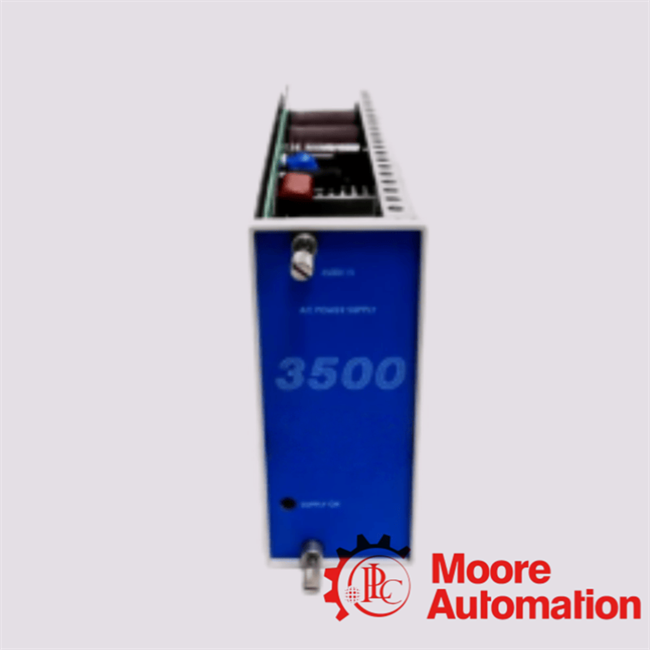

The 3500/15 (106M1079-01 + 106M1081-01) is a universal AC/DC modular power supply system designed for the Bently Nevada 3500 Machinery Protection Platform. It provides regulated, high-reliability electrical power to all modules installed within the 3500 rack, ensuring continuous operation of critical condition monitoring and protection functions.Together, these modules form a half-height redundant power architecture capable of converting a wide range of AC input voltages into stable DC outputs required by 3500 system modules.A key design principle of the 3500/15 (106M1079-01 + 106M1081-01) is system-level power redundancy. A single rack may contain one or two power supplies, where each unit is capable of independently powering the full system. When two modules are installed, they operate in a primary–backup configuration, enabling seamless failover without interrupting machinery protection functions.The module supports hot-swappable operation, allowing replacement or maintenance of a power supply without shutting down the rack, provided a secondary supply is active. This ensures maximum system availability in mission-critical industrial environments such as power generation, oil & gas, and heavy rotating machinery monitoring systems.Additionally, the 3500/15 (106M1079-01 + 106M1081-01) is engineered with wide input voltage tolerance, high conversion efficiency, and industrial-grade protection circuits, making it suitable for harsh operational environments where voltage instability, temperature variation, and electrical noise are common.

Technical Data Parameters

Advanced Engineering FAQ

1. What fundamental power distribution topology underpins the operational integrity of the 3500/15 (106M1079-01 + 106M1081-01) within a 3500 machinery protection rack architecture?

The 3500/15 (106M1079-01 + 106M1081-01) functions as a redundant AC/DC power supply module system, delivering regulated and isolated power to all 3500 rack modules. It employs a dual-module configuration to ensure uninterrupted voltage provisioning and system-level fault tolerance.

2. How does the 3500/15 (106M1079-01 + 106M1081-01) implement redundancy to achieve zero single-point-of-failure power delivery?

The 3500/15 (106M1079-01 + 106M1081-01) uses a dual independent power supply architecture operating in parallel redundancy mode. If one module fails, the second seamlessly assumes full load without interruption, ensuring continuous rack operation.

3. Why is the modular pairing of 106M1079-01 and 106M1081-01 within the 3500/15 (106M1079-01 + 106M1081-01) critical for high-availability industrial monitoring systems?

The dual-module configuration ensures load sharing, thermal balancing, and fault isolation. This architecture is essential in mission-critical environments where continuous monitoring of rotating machinery cannot tolerate power disruption.

4. What electrical conversion mechanisms are embedded within the 3500/15 (106M1079-01 + 106M1081-01) to accommodate industrial-grade AC inputs?

The 3500/15 (106M1079-01 + 106M1081-01) performs AC-to-DC conversion using high-efficiency switching power conversion circuits, providing stable DC output with regulated voltage levels for downstream 3500 system modules.

5. How does the 3500/15 (106M1079-01 + 106M1081-01) maintain voltage stability under dynamic load variations across the 3500 rack?

The module incorporates closed-loop voltage regulation and dynamic load compensation, ensuring consistent output even when multiple monitoring modules simultaneously adjust their power consumption profiles.
