Description

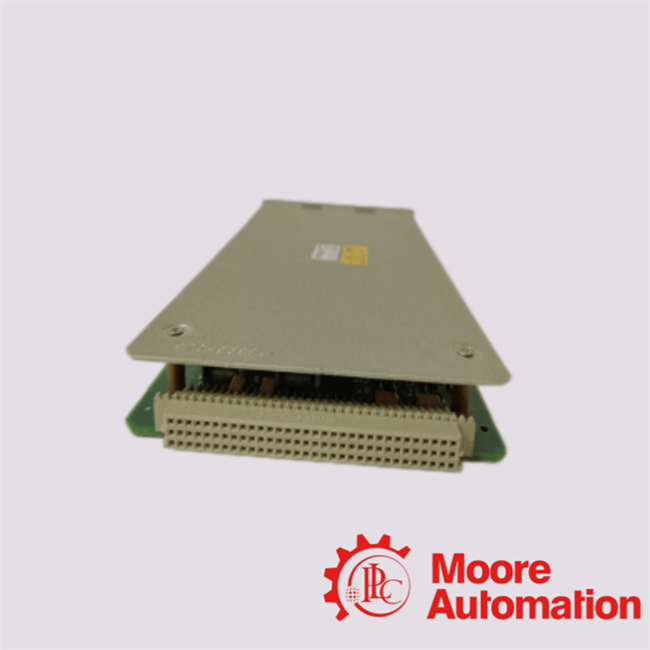

The 3500/25 (149369-01 + 125800-01) is an advanced half-height, dual-channel Enhanced Keyphasor® module designed for the Bently Nevada 3500 Machinery Protection System. It provides precise rotational phase reference signals that are essential for synchronous vibration analysis, shaft speed measurement, and rotor dynamic diagnostics in critical rotating machinery.The 3500/25 (149369-01 + 125800-01) is also designed with expanded signal processing capability, improved resolution, and backward compatibility with legacy Keyphasor modules, ensuring seamless integration into existing 3500 rack architectures.For high-availability applications, multiple Keyphasor modules can operate in paired or redundant configurations, supporting TMR (Triple Modular Redundant) system designs to ensure uninterrupted phase reference availability in mission-critical machinery protection systems.

Technical Data Parameters

Advanced Engineering FAQ

1. What fundamental phase-reference generation paradigm governs the operational mechanism of the 3500/25 (149369-01 + 125800-01) within rotating machinery monitoring architectures?
The 3500/25 (149369-01 + 125800-01) operates as an Enhanced Keyphasor® module, generating precise once-per-revolution or multi-event-per-revolution timing signals. These signals establish a deterministic phase reference essential for synchronous vibration analysis and vector-based diagnostics in rotating machinery systems.

2. How does the 3500/25 (149369-01 + 125800-01) achieve high-resolution rotational event detection under variable speed conditions?
The 3500/25 (149369-01 + 125800-01) employs adaptive signal conditioning and high-speed edge detection circuitry to accurately identify shaft markers even under transient speed fluctuations, ensuring stable phase reference output across wide operational ranges.

3. Why is the dual-channel architecture of the 3500/25 (149369-01 + 125800-01) critical for redundancy and signal reliability in turbomachinery applications?
The 3500/25 (149369-01 + 125800-01) incorporates two independent Keyphasor input channels, enabling redundant or dual-event tracking configurations. This architecture enhances fault tolerance and ensures continuous phase signal availability in mission-critical environments.

4. What categories of transducer technologies can be interfaced with the 3500/25 (149369-01 + 125800-01), and how does it accommodate their signal heterogeneity?
The 3500/25 (149369-01 + 125800-01) supports proximity probes and magnetic pickup sensors. It provides configurable input conditioning to accommodate differing waveform characteristics, amplitude ranges, and installation geometries.

5. How does the 3500/25 (149369-01 + 125800-01) ensure deterministic phase alignment for advanced vibration vector analysis?
By producing precisely timed Keyphasor pulses, the 3500/25 (149369-01 + 125800-01) enables phase-locked acquisition of vibration data, supporting advanced analytical techniques such as Bode plots, polar plots, and orbit analysis.
