Description

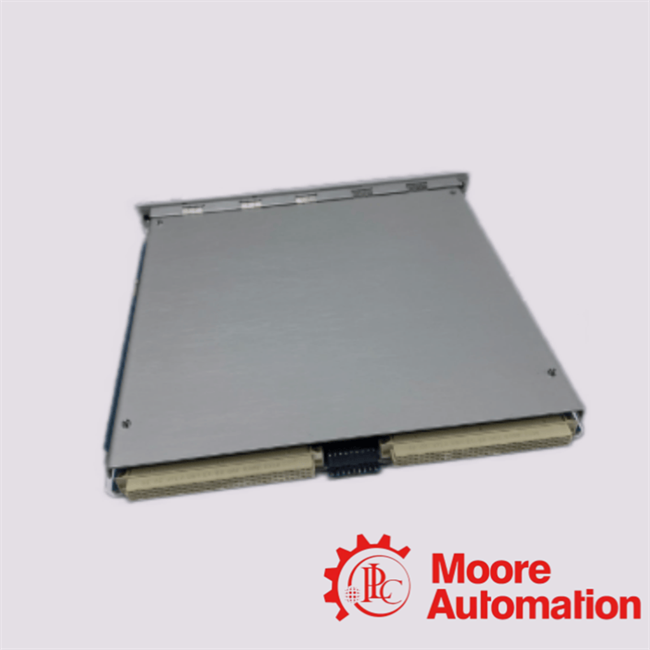

The 3500/42 (176449-02 + 128229-01) is a four-channel Proximitor®/Seismic Monitor module within the Bently Nevada 3500 Machinery Protection System, engineered for comprehensive dual-domain vibration and position monitoring of rotating machinery.According to datasheet-level documentation, the module continuously conditions incoming analog signals, converts them into engineering units, and compares them against user-defined alarm thresholds for machinery protection purposes.The 3500/42 (176449-02 + 128229-01) is designed for real-time condition monitoring and trip logic execution, ensuring rapid response to abnormal mechanical behavior such as imbalance, misalignment, bearing degradation, or rotor instability. It also supports advanced diagnostic outputs used in vibration analysis and predictive maintenance systems.A key architectural feature is its channel-paired configurability, allowing each channel pair to be independently assigned to different measurement types, thereby maximizing diagnostic flexibility within a single module.

Technical Data Parameters

Advanced Engineering FAQ

1. What core multiphysics monitoring architecture defines the operational paradigm of the 3500/42 (176449-02 + 128229-01) within integrated machinery protection systems?
The 3500/42 (176449-02 + 128229-01) is a multi-channel Proximitor/Seismic Monitor that integrates both shaft-relative vibration and casing absolute vibration measurement domains, enabling unified condition monitoring of rotating machinery dynamics within the Bently Nevada 3500 platform.

2. How does the 3500/42 (176449-02 + 128229-01) reconcile heterogeneous transducer inputs into a coherent diagnostic data stream?
The 3500/42 (176449-02 + 128229-01) processes signals from proximity probes, accelerometers, and velocity sensors through adaptive signal conditioning circuits, converting disparate analog inputs into standardized engineering units for real-time analysis.

3. Why is the dual-domain measurement capability of the 3500/42 (176449-02 + 128229-01) critical for comprehensive rotor-dynamic assessment?
The 3500/42 (176449-02 + 128229-01) simultaneously evaluates both relative shaft motion and absolute casing vibration, enabling holistic diagnostics that capture rotor-stator interactions, structural resonance, and shaft displacement phenomena.

4. What configurational flexibility mechanisms are embedded within the 3500/42 (176449-02 + 128229-01) to support multi-parameter channel allocation?
The 3500/42 (176449-02 + 128229-01) allows each of its four channels to be independently configured or paired, enabling dynamic assignment to measurements such as radial vibration, thrust position, eccentricity, or velocity depending on application requirements.

5. How does the 3500/42 (176449-02 + 128229-01) ensure high-fidelity signal conditioning under electrically noisy industrial environments?
The 3500/42 (176449-02 + 128229-01) incorporates advanced filtering, differential input design, and isolation strategies through the 128229-01 I/O module, ensuring robust immunity against electromagnetic interference and signal distortion.
