Description

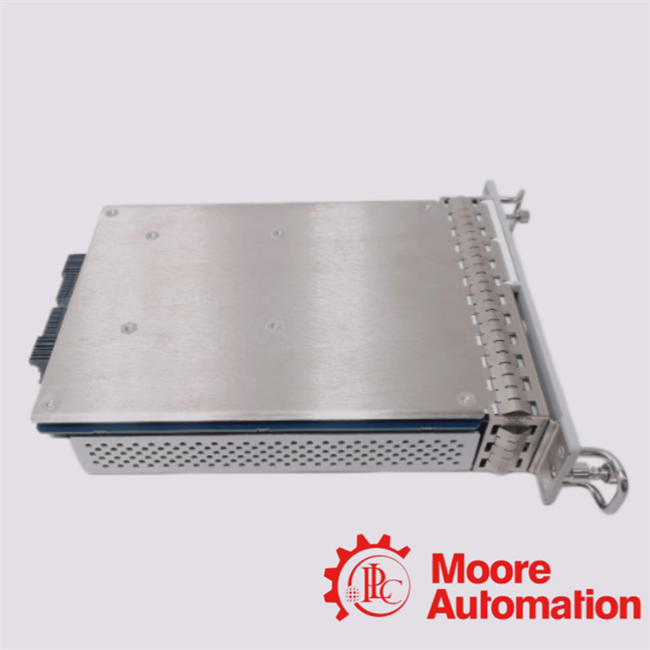

The 3500/61 (133811-02 + 133819-02) is a high-density six-channel temperature monitoring module within the Bently Nevada 3500 Machinery Protection System, engineered for continuous acquisition and protection-grade evaluation of industrial temperature signals.Together, the 3500/61 (133811-02 + 133819-02) provides a unified platform for processing both Resistance Temperature Detector (RTD) and Thermocouple (TC) inputs, converting raw thermal signals into calibrated engineering units for machinery protection and condition monitoring applications.The module continuously conditions incoming temperature signals and compares them against user-programmable Alert and Danger setpoints, enabling real-time thermal protection for critical assets such as turbines, compressors, motors, pumps, and generators.A key functional distinction of the 3500/61 (133811-02 + 133819-02) is its ability to provide recorder outputs for each channel, allowing integration with external data acquisition and plant historian systems for long-term thermal trend analysis.Designed for industrial-grade reliability, the system supports continuous operation in harsh environments, with built-in diagnostics, channel-level configuration flexibility, and compatibility with the full 3500 rack architecture.

Technical Data Parameters

Advanced Engineering FAQ

1. What thermodynamic sensing architecture underpins the operational functionality of the 3500/61 (133811-02 + 133819-02) within industrial machinery protection ecosystems?
The 3500/61 (133811-02 + 133819-02) is a multi-channel temperature monitoring module designed to acquire and process thermal signals from RTDs and thermocouples, converting raw temperature-dependent resistance or millivolt inputs into calibrated engineering units for machinery protection and diagnostics.

2. How does the 3500/61 (133811-02 + 133819-02) accommodate heterogeneous temperature sensor technologies within a unified monitoring framework?
The 3500/61 (133811-02 + 133819-02) supports both Resistance Temperature Detectors (RTDs) and thermocouple inputs through configurable channel conditioning, enabling flexible integration of diverse thermal sensing elements within a single monitoring architecture.

3. Why is the multi-channel thermal acquisition capability of the 3500/61 (133811-02 + 133819-02) critical for comprehensive thermal profiling in rotating machinery systems?
The 3500/61 (133811-02 + 133819-02) provides up to multiple independent temperature measurement channels, allowing simultaneous monitoring of bearings, stator windings, lubrication systems, and process fluid temperatures for holistic thermal behavior analysis.

4. What signal conditioning methodologies are embedded within the 3500/61 (133811-02 + 133819-02) to ensure high-fidelity temperature conversion accuracy?
The 3500/61 (133811-02 + 133819-02) utilizes precision excitation current sources for RTDs and cold junction compensation for thermocouples, combined with digital linearization algorithms to ensure accurate temperature conversion across wide operating ranges.

5. How does the 3500/61 (133811-02 + 133819-02) mitigate noise susceptibility and signal drift in electrically hostile industrial environments?
The 3500/61 (133811-02 + 133819-02) incorporates differential input design, signal filtering, and galvanic isolation via its I/O module, significantly reducing electromagnetic interference and long-term measurement drift.
