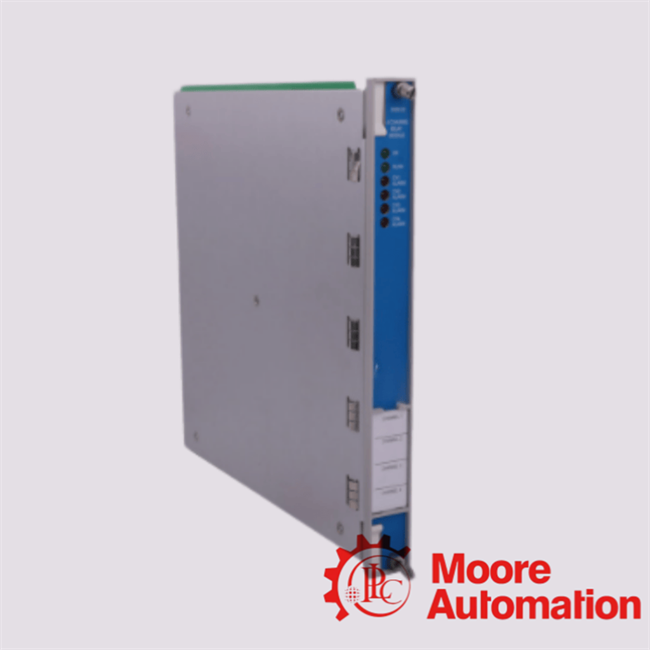

3500/72M(149734-08+135489-01) Bently Nevada Recip Impulse Velocity Monitor
Description
The 3500/72M(149734-08+135489-01) is a dedicated module within the Bently Nevada 3500 Machinery Protection System designed for reciprocating machinery impulse and velocity-related monitoring applications.It is engineered to interface with compatible vibration/velocity transducers and process dynamic mechanical signals associated with reciprocating compressor or engine systems, enabling continuous monitoring of mechanical impulse behavior and vibration velocity characteristics.Within the 3500 rack architecture, the module performs signal conditioning, conversion, and system-level communication, providing standardized measurement data to support machinery protection logic, alarm generation, and condition monitoring strategies.The module is designed for integration into industrial environments where reciprocating equipment exhibits complex transient and cyclic loading behavior, requiring stable and repeatable measurement acquisition.
Advanced Engineering FAQ
1. How does the 3500/72M(149734-08+135489-01) perform transducer signal conditioning for reciprocating rod position measurement applications?
The 3500/72M(149734-08+135489-01) conditions raw input signals from compatible displacement transducers by applying internal signal conditioning circuitry, converting the sensor output into stable, usable measurement data for rod position monitoring within the 3500 monitoring system.
2. What mechanism does the 3500/72M(149734-08+135489-01) use to convert raw sensor signals into engineering units?
The 3500/72M(149734-08+135489-01) converts transducer signals into engineering units through factory-defined scaling parameters and calibration factors stored within the module configuration, ensuring consistent measurement representation across the full operating range.
3. How is linearization achieved in the 3500/72M(149734-08+135489-01) without explicit external computation modules?
The 3500/72M(149734-08+135489-01) applies internal linearization processing based on preconfigured calibration characteristics to compensate for non-linear sensor response behavior in reciprocating machinery rod position measurement.
4. What type of transducer interface architecture is implemented in the 3500/72M(149734-08+135489-01)?
The 3500/72M(149734-08+135489-01) supports proximity-based and displacement transducer inputs through dedicated interface channels designed for integration with reciprocating compressor measurement systems.
5. How does the 3500/72M(149734-08+135489-01) integrate within the 3500 rack communication backplane?
The 3500/72M(149734-08+135489-01) communicates via the 3500 rack backplane architecture, enabling synchronized data exchange with other monitoring modules and centralized system-level processing.
