Description

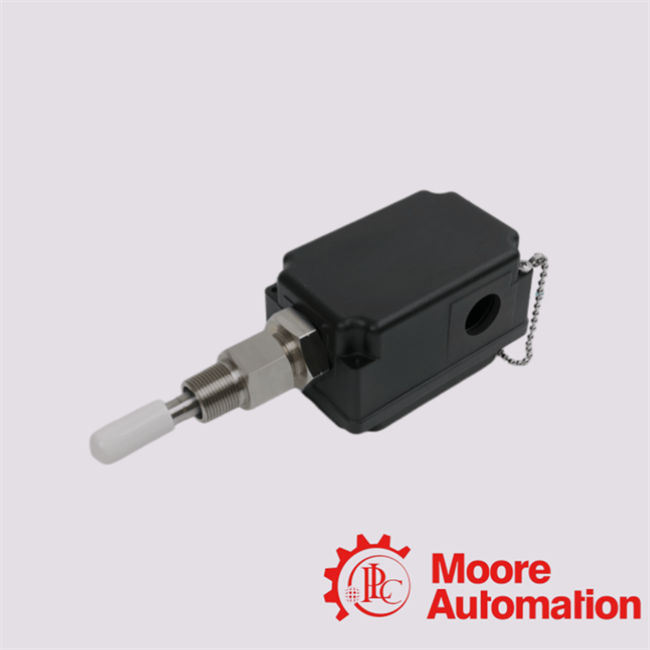

The Bently Nevada 330801-28-04-105-00-02 PROXPAC XL Proximity Transducer Assembly is an integrated eddy-current measurement system designed for high-precision shaft vibration and displacement monitoring in rotating machinery.It combines a proximity probe and embedded 3300 XL Proximitor sensor within a rugged PROXPAC XL housing, eliminating the need for external signal conditioning hardware and ensuring stable electromagnetic coupling performance.The configuration defines probe geometry, standoff structure, insertion depth, mounting interface, and electrical integration parameters. It is widely used in turbines, compressors, motors, and generators where high-reliability condition monitoring and machinery protection are required.

Advanced Engineering FAQ

1. What is the fundamental eddy-current transduction mechanism governing the 330801-28-04-105-00-02 in proximity-based displacement measurement systems?

The 330801-28-04-105-00-02 operates on the eddy-current inductive sensing principle, wherein a high-frequency electromagnetic field generated at the probe tip is modulated by conductive target proximity, producing a proportional voltage signal representing shaft displacement and vibration amplitude.

2. How does the 330801-28-04-105-00-02 integrate sensing and signal conditioning within its PROXPAC XL architecture?

The 330801-28-04-105-00-02 incorporates an integrated 3300 XL Proximitor sensor within the probe housing, forming a self-contained measurement assembly that eliminates external signal conditioning modules, thereby reducing system complexity and minimizing electromagnetic interference susceptibility.

3. What does the configuration encoding of the 330801-28-04-105-00-02 signify in terms of probe geometry, insertion depth, and mechanical integration topology?

The 330801-28-04-105-00-02 encoding defines system-level parameters including probe family (330801), probe diameter and configuration (-28), mounting/standoff architecture (-04), probe insertion geometry (-105), cable/connector arrangement (-00), and mounting interface specification (-02), collectively defining its installation and integration profile.

4. Why is the 330801-28-04-105-00-02 engineered for high-integrity performance in turbomachinery vibration monitoring applications?

The 330801-28-04-105-00-02 is designed to maintain electromagnetic field stability and mechanical alignment integrity under high rotational speeds, axial thrust variation, and severe vibratory excitation conditions typical of turbines, compressors, and rotating industrial machinery.

5. How does the 330801-28-04-105-00-02 ensure deterministic probe-to-target spatial alignment under dynamic rotor conditions?

The 330801-28-04-105-00-02 employs a rigid integrated housing structure that suppresses micro-displacement and mechanical compliance, ensuring consistent probe standoff geometry and stable eddy-current coupling characteristics under dynamic operating conditions.
