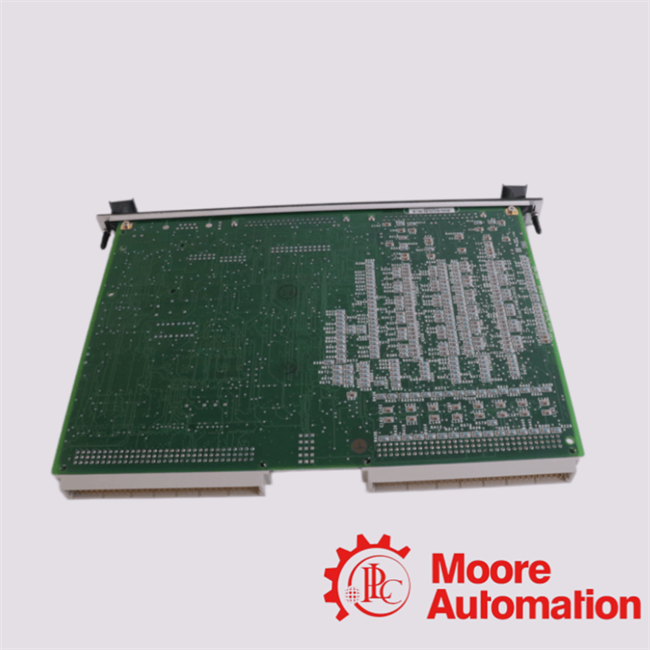

IS200VCMIH2BCD/IS215VCMIH2BC General Electric Bus Master Controller Board

Overview

The IS200VCMIH2BCD / IS215VCMIH2BC functions as a VME Bus Master Controller (VCMI), acting as the central communication backbone in GE’s distributed control systems. It is responsible for managing real-time data synchronization, VME backplane arbitration, and IONet communication routing across turbine control modules.Developed under the industrial automation portfolio of GE Vernova, this board is engineered for high-reliability power generation environments, including gas turbines, steam turbines, and combined-cycle plants.

FAQ about IS200TDBTH2A

1. What is the architectural role of the IS200VCMIH2BCD / IS215VCMIH2BC within the GE Mark VI control ecosystem?

The IS200VCMIH2BCD / IS215VCMIH2BC functions as a VME Bus Master Controller (VCMI), acting as the central communication orchestrator between the Mark VI controller, VME backplane I/O modules, and the distributed IONet network. It governs deterministic data exchange, rack-level synchronization, and real-time control messaging across turbine automation subsystems.

2. How does the IS200VCMIH2BCD / IS215VCMIH2BC implement deterministic VME bus arbitration?

The IS200VCMIH2BCD / IS215VCMIH2BC operates as the VME bus master, enforcing arbitration protocols that regulate bus ownership, prioritization, and transaction timing. How does it ensure determinism under high I/O throughput conditions and multi-rack configurations?

3. In what way does the IS200VCMIH2BCD / IS215VCMIH2BC optimize IONet communication topology?

The IS200VCMIH2BCD / IS215VCMIH2BC establishes a multi-port IONet interface (10Base2 Ethernet architecture), enabling synchronized communication across local and remote I/O racks. How does its dual/tri-port redundancy architecture enhance packet integrity and minimize latency propagation?

4. What is the significance of board identity management in IS200VCMIH2BCD / IS215VCMIH2BC operation?

The IS200VCMIH2BCD / IS215VCMIH2BC performs automated rack-level node identification and terminal board enumeration, assigning deterministic IDs to all VME-resident modules. How does this hierarchical ID mapping contribute to system integrity in large-scale turbine control frameworks?

5. How does the IS200VCMIH2BCD / IS215VCMIH2BC support simplex versus TMR redundancy paradigms?

The IS200VCMIH2BCD / IS215VCMIH2BC is architecturally compatible with both Simplex and Triple Modular Redundant (TMR) configurations, dynamically adjusting data voting and replication mechanisms. How does its synchronization logic adapt to fault-tolerant state-exchange in TMR environments?
