Description

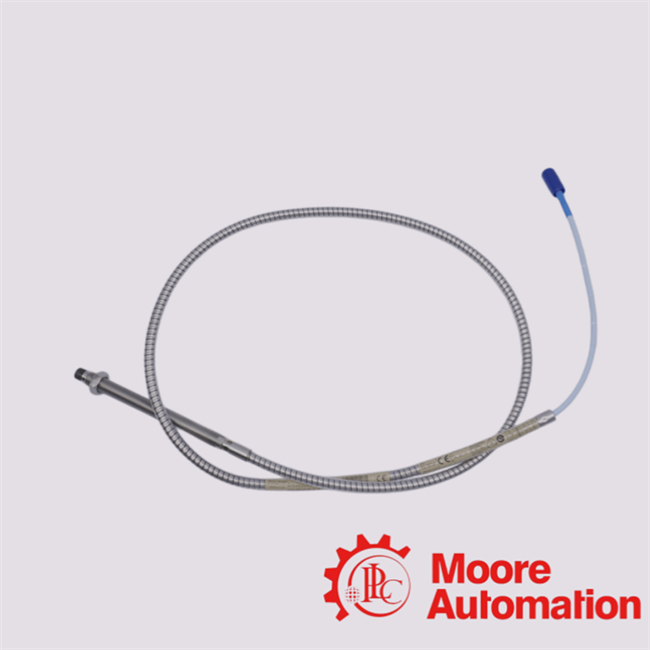

The 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe is a precision-engineered eddy current proximity transducer element designed for high-accuracy, non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery monitoring systems. It is a key sensing component within the Bently Nevada 3300 XL 8 mm proximity transducer platform, widely deployed in industrial machinery protection and condition monitoring applications.The 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe is a high-precision industrial proximity sensor designed for reliable, long-term operation in demanding rotating machinery environments. Its eddy current-based measurement principle, modular configuration, and rugged mechanical design make it an essential component in modern industrial condition monitoring and machinery protection systems.

Advanced Engineering FAQ

Q1. What is the metrological transduction principle implemented in the 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe for non-contact displacement measurement?

The 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe operates on the eddy current electromagnetic induction principle, where a high-frequency RF field induces eddy currents in a conductive rotor target, and variations in coupling impedance are converted into a linearized voltage proportional to shaft displacement.

Q2. How does the 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe maintain signal linearity across its calibrated measurement envelope?

The 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe ensures linear response behavior through optimized coil geometry, controlled electromagnetic field distribution, and system-level calibration when paired with a 3300 XL Proximitor® sensor, enabling stable sensitivity across the defined gap range.

Q3. What mechanical configuration and dimensional encoding define the 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe assembly?

The 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe configuration includes:

• 8 mm probe tip architecture
• 3/8-24 UNF threaded mounting interface
• “00” unthreaded length configuration (0 mm variant)
• “40” case length configuration (mechanical housing length variant)
• “10” cable length approximately 1.0 meter
• “01” miniature ClickLoc coaxial connector system
• “05” agency approval package (industrial certification set)

These parameters define installation geometry and system compatibility.

Q4. What thermomechanical operating boundaries govern the performance stability of the 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe?

The 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe is engineered for harsh industrial environments, typically operating within approximately -52°C to +177°C, while maintaining structural integrity and electromagnetic stability under high vibration and hydrocarbon exposure conditions.

Q5. How is the 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe integrated into a complete proximity transducer measurement chain?

The 330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm probe functions as the primary sensing element in a three-component architecture comprising the probe, extension cable, and Proximitor® signal conditioner, forming a calibrated eddy current measurement loop for real-time rotor dynamics monitoring.
