Description

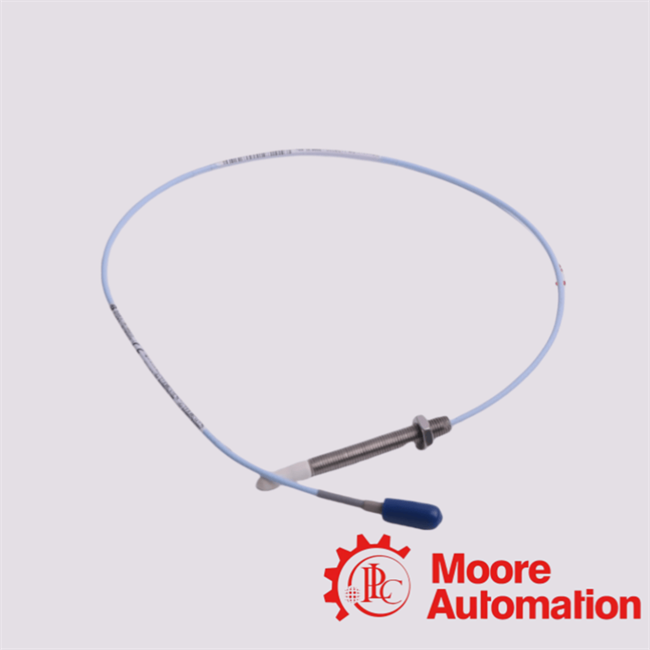

The 330903-03-11-05-02-05 Bently Nevada 3300 Series Probe Sensor is a high-precision eddy current proximity transducer element designed for continuous monitoring of shaft vibration, radial displacement, and axial position in rotating machinery systems. It is part of the Bently Nevada 3300 NSv / 3300 XL-compatible proximity probe family, widely used in industrial condition monitoring and protection applications.The 330903-03-11-05-02-05 Bently Nevada 3300 Series Probe Sensor is a precision-engineered proximity sensing device designed for high-reliability industrial monitoring. Its eddy current-based measurement principle, modular configuration system, and robust mechanical design make it a core component in modern turbomachinery protection and condition monitoring infrastructures.

Advanced Engineering FAQ

Q1. What is the fundamental electromagnetic transduction principle governing the 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor in proximity measurement systems?

The 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor operates on the eddy current induction principle, where a high-frequency electromagnetic field is generated at the probe tip, inducing eddy currents in a conductive target surface, and converting impedance variations into a proportional displacement voltage signal for non-contact measurement.

Q2. How does the 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor achieve high-resolution shaft vibration and displacement detection?

The 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor achieves high-resolution sensing through optimized coil geometry, stable RF excitation circuitry, and system-calibrated linear response characteristics when paired with a compatible Bently Nevada Proximitor® sensor and extension cable network.

Q3. What mechanical configuration parameters define the structural encoding of the 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor?

The 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor configuration is defined by modular ordering segments typically representing:

• Unthreaded probe length (03 variant)
• Case length configuration (11 variant)
• Cable length segment (05 variant)
• Connector type (02 miniature coaxial ClickLoc system)
• Certification / agency approval (05 multi-standard compliance package)

Q4. Why is the 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor optimized for compact turbomachinery installation environments?

The 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor is optimized for constrained mechanical geometries through its compact 8 mm-class sensing architecture and M8X1-type installation compatibility, enabling deployment in tight radial clearances such as compressors and small turbine casings.

Q5. What is the metrological linearity performance characteristic of the 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor?

The 330903-03-11-05-02-05 Bently Nevada 3300 series Probe Sensor exhibits a calibrated linear measurement response typically in the order of a 1.5 mm displacement range (≈60 mils class) with low deviation from linearity, enabling precise shaft orbit reconstruction and vibration amplitude analysis.
