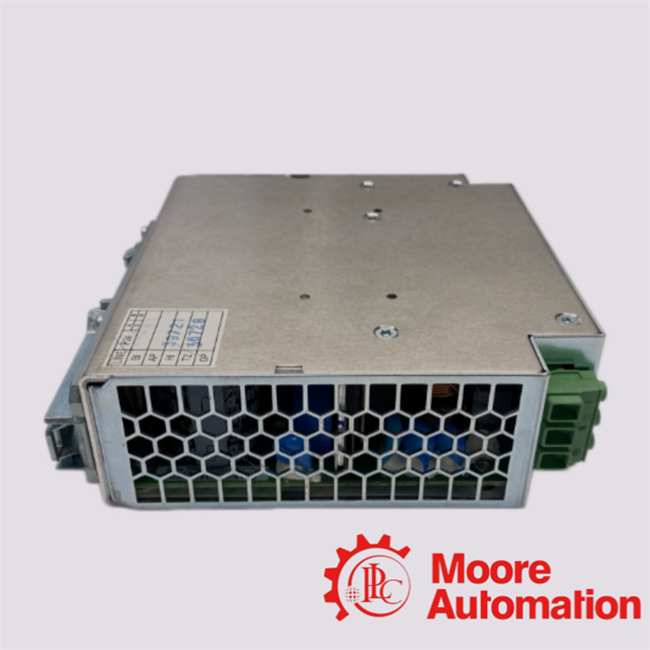

QUINT4-PS/1AC/12DC/15 Primary-switched QUINT POWER power supply

Description

 The QUINT4-PS/1AC/12DC/15 is a fourth-generation industrial-grade primary-switched AC/DC power supply from the QUINT POWER series by Phoenix Contact. It is engineered for high-reliability DC power delivery, combining advanced switching topology, intelligent load management, and predictive diagnostics for modern automation systems.

Key Technical Specifications

FAQ

1. What topological architecture defines the QUINT4-PS/1AC/12DC/15 within modern industrial switched-mode power supply systems?

The QUINT4-PS/1AC/12DC/15 is engineered as a fourth-generation primary-switched single-phase AC/DC power supply, utilizing a high-efficiency switch-mode topology optimized for dynamic load response, compact power density, and industrial-grade energy conversion stability.

2. How does the QUINT4-PS/1AC/12DC/15 achieve regulated DC output under variable grid disturbances?

The QUINT4-PS/1AC/12DC/15 maintains a precisely stabilized 12 V DC / 15 A output (180 W nominal) through an adaptive regulation loop that compensates for input voltage fluctuations across a wide AC range (typically 100–240 V AC), ensuring deterministic output integrity under unstable grid conditions.

3. What role does dynamic power reserve play in the operational behavior of the QUINT4-PS/1AC/12DC/15?

The QUINT4-PS/1AC/12DC/15 incorporates dynamic boost capability, allowing temporary current overdelivery beyond nominal 15 A to support high inrush loads and transient actuator activation without triggering shutdown or voltage collapse.

4. How does the QUINT4-PS/1AC/12DC/15 implement selective fuse breaking (SFB) technology?

The QUINT4-PS/1AC/12DC/15 utilizes Selective Fuse Breaking (SFB), a proprietary fault-clearing mechanism that delivers extremely high short-circuit current pulses to selectively trip downstream protection devices, enabling targeted fault isolation without collapsing the entire DC bus.

5. What efficiency optimization mechanisms are embedded in the QUINT4-PS/1AC/12DC/15 power conversion stage?

The QUINT4-PS/1AC/12DC/15 employs high-frequency switching with synchronous rectification and low-loss semiconductor topology, achieving high conversion efficiency and minimizing thermal dissipation, thereby supporting compact cabinet integration and reduced cooling overhead.
