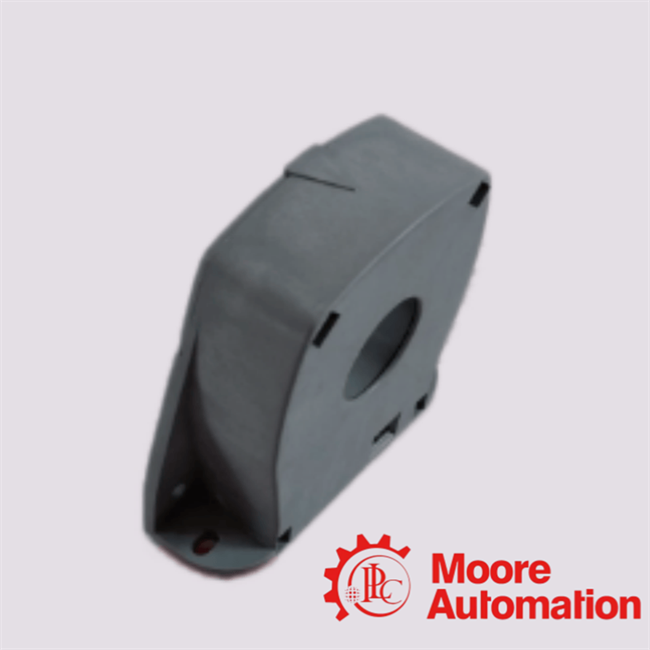

CSNK500M-600 HONEYWELL Closed Loop Current Transducer

CSNK500M-600 is a closed-loop (zero-flux) precision current transducer from Honeywell’s CSN series, designed for high-accuracy galvanically isolated measurement of AC, DC, and impulse currents in industrial power electronics and energy systems.It is engineered around a magnetic compensation feedback architecture, where the core flux is continuously driven to zero, ensuring highly linear and drift-stable current sensing performance.

❓ 1. What electromagnetic feedback principle governs the operational architecture of the CSNK500M-600 closed loop current transducer?

The CSNK500M-600 operates on a zero-flux (null balance) closed-loop compensation principle, where a secondary compensation winding actively cancels the magnetic flux generated by the primary conductor, ensuring linear proportionality between measured current and feedback current.

❓ 2. How does the CSNK500M-600 implement high-precision galvanically isolated current sensing under AC, DC, and impulse regimes?

The CSNK500M-600 utilizes Hall-effect or magnetoresistive sensing elements combined with closed-loop magnetic compensation, enabling accurate measurement of AC, DC, and transient impulse currents while maintaining galvanic isolation between primary and secondary circuits.

❓ 3. What is the rated nominal current and extended sensing dynamic range of the CSNK500M-600 under industrial operating conditions?

The CSNK500M-600 is typically specified with a 500 A nominal primary current rating, while supporting an extended measurement range up to approximately ±1200 A to ±1275 A, depending on configuration and overload tolerance envelope.

❓ 4. How does the CSNK500M-600 maintain sub-microsecond transient response in high-frequency power electronic environments?

The CSNK500M-600 achieves <1 µs response time through a tightly coupled magnetic core design and high-bandwidth feedback loop control, ensuring rapid flux compensation and minimal phase lag in dynamic current waveforms.

❓ 5. What metrological accuracy class and linearity performance can be expected from the CSNK500M-600 transducer?

The CSNK500M-600 typically delivers ±0.5% measurement accuracy, achieved via precision-wound secondary compensation coils and stabilized flux-gate or Hall feedback regulation, ensuring high linearity across its full dynamic operating range.
