Description

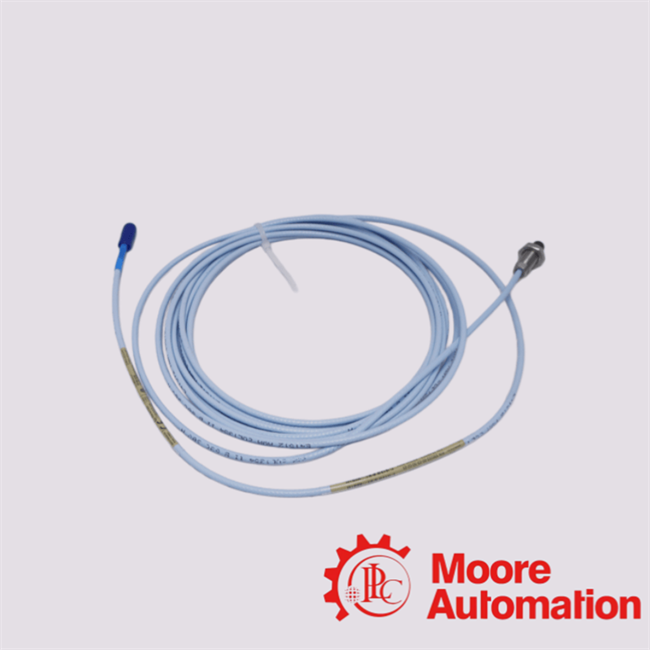

The 330103-00-03-15-01-CN is a Bently Nevada 3300 XL series eddy-current proximity sensor probe, engineered for high-precision, non-contact measurement of shaft displacement, vibration, and rotor dynamics in critical rotating machinery systems. It is a core component in industrial condition monitoring and machinery protection architectures.The probe operates on an eddy-current induction principle, converting variations in electromagnetic field coupling into a linear voltage proportional to shaft proximity. This enables accurate measurement of radial vibration, axial displacement, eccentricity, and mechanical runout without physical contact.The 330103-00-03-15-01-CN is integrated into a three-component transducer system, including the probe, extension cable, and Proximitor® module, ensuring calibrated signal conversion and high-fidelity measurement integrity.

Advanced Engineering FAQ

Q1: What is the fundamental eddy-current transduction physics governing the 330103-00-03-15-01-CN for non-contact shaft displacement metrology in rotating machinery systems?

A: The 330103-00-03-15-01-CN operates on a high-frequency eddy-current electromagnetic induction principle, where an alternating magnetic field generated at the probe tip induces eddy currents in a conductive target surface. The resulting impedance variation is converted into a linear voltage proportional to the probe-to-target gap, enabling high-precision non-contact measurement of shaft vibration and displacement.

Q2: How does the 330103-00-03-15-01-CN implement parametric configuration encoding within its part-number architecture to define mechanical and electrical specifications?

A: The 330103-00-03-15-01-CN uses a segmented engineering code structure, where each numerical block defines key attributes such as case length, probe body configuration, total length, mounting style, and regional certification variant. The “CN” suffix typically denotes a China-region compliance or configuration designation, ensuring deployment compatibility within specified industrial standards.

Q3: What is the environmental and thermomechanical operating envelope of the 330103-00-03-15-01-CN under harsh industrial conditions?

A: The 330103-00-03-15-01-CN is engineered for industrial-grade environments and typically operates within a −40°C to +120°C class-dependent range, depending on system configuration. Its stainless-steel probe construction provides resistance to corrosion, vibration fatigue, and humidity ingress, ensuring long-term measurement stability in turbomachinery applications.

Q4: How does the 330103-00-03-15-01-CN maintain metrological linearity and minimize signal distortion across its calibrated measurement range?

A: The 330103-00-03-15-01-CN utilizes a calibrated eddy-current response curve with optimized linearization characteristics, ensuring a stable and repeatable voltage-to-displacement relationship. This minimizes nonlinearity, hysteresis, and drift, enabling precise vibration and position measurement in rotating machinery systems.

Q5: In what way does the 330103-00-03-15-01-CN integrate into a complete Bently Nevada 3300 XL proximity transducer system architecture?

A: The 330103-00-03-15-01-CN functions as the primary sensing element in a three-component proximity measurement chain, consisting of the probe, extension cable, and Proximitor® signal conditioning module. This architecture ensures impedance matching, signal linearization, and calibrated gap-to-voltage conversion for industrial monitoring systems.
