Description

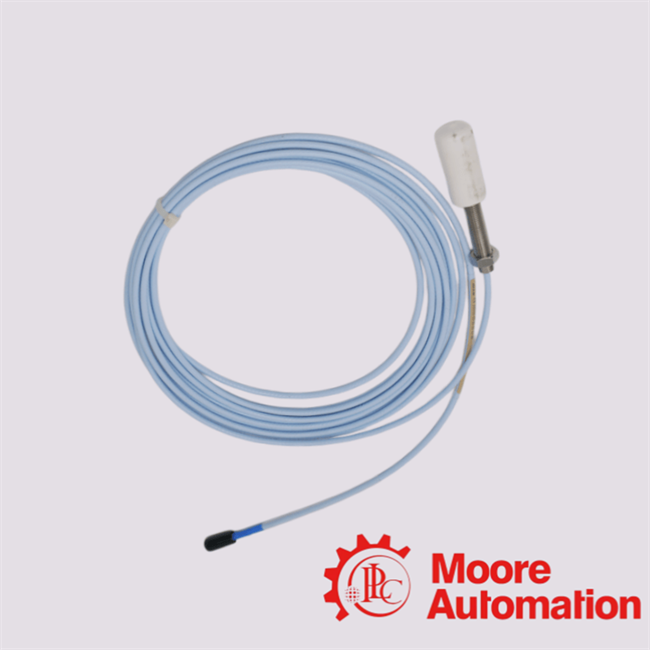

The 330101-00-31-20-02-05 is a precision-engineered eddy current proximity probe system component configuration used in industrial machinery condition monitoring applications. It is part of the Bently Nevada 3300 XL proximity transducer system, designed for accurate measurement of shaft vibration, displacement, and rotor dynamics in critical rotating equipment.This configuration represents a proximity probe assembly (and associated extension cable specification in the ordering structure) that operates as part of a complete measurement chain including a probe, extension cable, and Proximitor® sensor.

Advanced Engineering FAQ

1. What is the core transduction principle behind the 330101-00-31-20-02-05 in eddy current proximity measurement systems?

The 330101-00-31-20-02-05 operates on the eddy current displacement transduction principle, where high-frequency electromagnetic fields are used to detect microscopic changes in conductive target spacing, enabling high-resolution shaft position monitoring in rotating machinery systems.

2. How does the 330101-00-31-20-02-05 function within a complete vibration monitoring architecture?

The 330101-00-31-20-02-05 serves as the primary sensing element in a proximity probe chain, converting mechanical displacement of a shaft into a proportional electrical signal processed by Proximitor® systems for vibration and position analysis.

3. What design characteristics define the sensing performance of the 330101-00-31-20-02-05?

The 330101-00-31-20-02-05 is engineered with precision coil geometry and optimized electromagnetic field distribution to ensure linear response characteristics and high sensitivity across the operational measurement range.

4. How does the 330101-00-31-20-02-05 ensure measurement stability under high-vibration conditions?

The 330101-00-31-20-02-05 utilizes mechanically stabilized probe construction and ruggedized encapsulation to maintain consistent coil-to-target alignment integrity even under severe industrial vibration environments.

5. What is the significance of the configuration coding within the 330101-00-31-20-02-05 specification structure?

In the 330101-00-31-20-02-05, the segmented numerical code defines probe system parameters such as cable length, armor type, connector configuration, and certification options, enabling precise system-level customization.
