Description

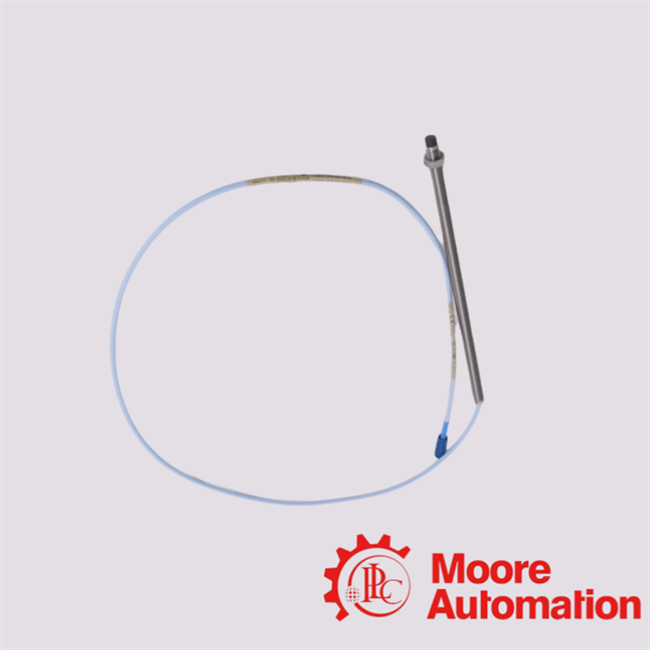

The 330101-00-12-15-02-05 is a high-precision eddy current proximity probe designed for non-contact measurement of shaft vibration and displacement in rotating machinery. It is part of the 3300 XL proximity transducer system and operates in conjunction with extension cables and Proximitor® sensors to form a complete measurement chain.The probe converts changes in shaft position into proportional electrical signals through electromagnetic field modulation. These signals are then processed by monitoring systems for vibration analysis, rotor dynamics evaluation, and machinery protection functions.

Engineered for industrial reliability, the 330101-00-12-15-02-05 features rugged encapsulation, EMI-resistant construction, and stable performance under high temperature, vibration, and contamination conditions. It is widely used in turbines, compressors, pumps, and other critical rotating equipment within condition monitoring infrastructures provided by Bently Nevada.

Advanced Engineering FAQ

1. What is the fundamental transduction mechanism governing the operation of the 330101-00-12-15-02-05 proximity probe?

The 330101-00-12-15-02-05 operates on the eddy current induction principle, where variations in conductive target proximity induce impedance changes in the probe coil, enabling high-resolution non-contact displacement measurement.

2. How does the 330101-00-12-15-02-05 achieve precision in shaft vibration and position sensing?

The 330101-00-12-15-02-05 utilizes a finely tuned coil geometry and calibrated electromagnetic field response to ensure linear voltage output proportional to micrometer-level shaft displacement variations.

3. In what manner does the 330101-00-12-15-02-05 integrate into a complete proximity transducer system?

The 330101-00-12-15-02-05 functions as the primary sensing element in a three-component architecture consisting of probe, extension cable, and Proximitor® sensor within Bently Nevada monitoring systems.

4. How does the 330101-00-12-15-02-05 maintain measurement stability under high-vibration industrial conditions?

The 330101-00-12-15-02-05 is engineered with mechanically reinforced encapsulation and vibration-resistant structural design to preserve coil-to-target alignment integrity in harsh rotating machinery environments.

5. What does the configuration code “00-12-15-02-05” signify in the 330101-00-12-15-02-05 specification framework?

In the 330101-00-12-15-02-05, the segmented numerical code defines probe physical dimensions, cable length options, armor type, termination style, and certification or compliance configurations within the ordering matrix.
