Description

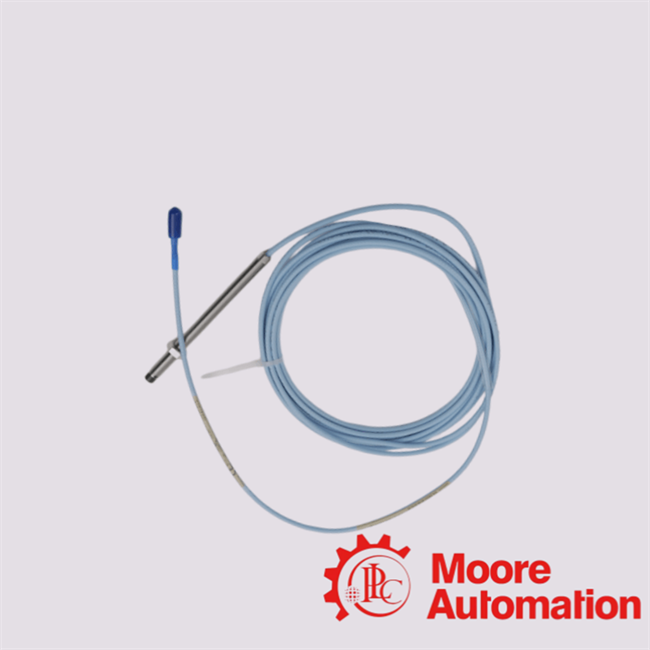

The 330101-00-44-15-02-05 is a high-precision 8 mm eddy current proximity probe belonging to the 3300 XL proximity transducer system, designed for non-contact measurement of shaft vibration, radial displacement, and rotor dynamic behavior in critical rotating machinery.It functions as the primary sensing element in a complete measurement chain that typically includes an extension cable and a Proximitor® sensor, forming a calibrated system for continuous machinery condition monitoring and protection.

Advanced Engineering FAQ

1. What is the fundamental sensing physics governing the 330101-00-44-15-02-05 within eddy-current displacement measurement systems?

The 330101-00-44-15-02-05 operates on the eddy-current induction principle, where high-frequency electromagnetic field perturbations induced by conductive target motion are converted into proportional voltage signals representing shaft displacement.

2. How does the 330101-00-44-15-02-05 achieve high-resolution shaft vibration transduction in turbomachinery applications?

The 330101-00-44-15-02-05 employs precision-wound coil geometry and optimized electromagnetic coupling efficiency to ensure linear response behavior across the calibrated measurement range of the 8 mm probe system.

3. In what manner does the 330101-00-44-15-02-05 integrate into a complete 3300 XL transducer chain architecture?

The 330101-00-44-15-02-05 functions as the primary sensing element in a three-part system consisting of probe, extension cable, and Proximitor® sensor within the Bently Nevada 3300 XL monitoring ecosystem.

4. How does the 330101-00-44-15-02-05 maintain metrological stability under severe vibration environments?

The 330101-00-44-15-02-05 is engineered with mechanically stabilized encapsulation and rigid probe tip architecture to prevent measurement drift under high-amplitude mechanical vibration conditions.

5. What does the configuration sequence “00-44-15-02-05” represent in the 330101-00-44-15-02-05 specification schema?

In the 330101-00-44-15-02-05, the code defines probe length variant, cable assembly configuration, armor type, connector termination style, and compliance or certification options within the ordering matrix.
