Description

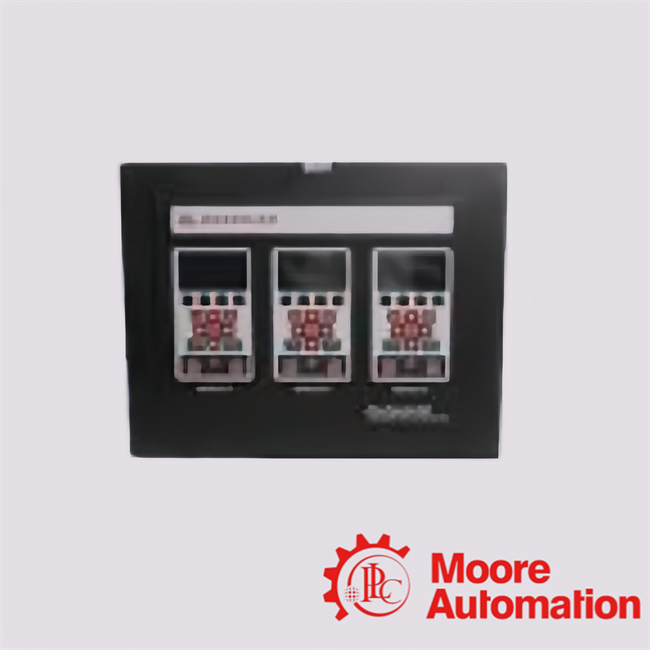

The 5437-2131 WOODWARD ProTech-GII Overspeed Protection System is a high-integrity, safety-certified turbine protection device designed to provide rapid and reliable shutdown of rotating machinery such as steam turbines, gas turbines, hydro turbines, compressors, and industrial engines under overspeed or over-acceleration conditions.It is built on a Triple Modular Redundant (TMR) architecture, consisting of three independent processing modules (A, B, and C), which operate using 2-out-of-3 voting logic to ensure fault tolerance and eliminate single-point failures in safety-critical applications.

Parameters of 5437-2131 WOODWARD ProTech-GII Overspeed Protection System

Frequently Asked Questions About 5437-2131

Q1: What functional safety architecture is embodied in the 5437-2131 WOODWARD ProTech-GII Overspeed Protection System?

A:
The 5437-2131 WOODWARD ProTech-GII Overspeed Protection System is engineered around a Triple Modular Redundant (TMR) architecture with 2-out-of-3 voting logic, ensuring fault-tolerant decision-making and eliminating single-point failure vulnerabilities in turbine protection applications.

Q2: How does the 5437-2131 WOODWARD ProTech-GII Overspeed Protection System achieve deterministic overspeed detection accuracy under dynamic rotor conditions?

A:
The 5437-2131 system utilizes high-resolution Magnetic Pickup Units (MPUs) or proximity-based speed sensors, enabling precise real-time monitoring of rotor velocity and acceleration, ensuring deterministic overspeed and over-acceleration event recognition within millisecond response windows.

Q3: In what manner does the 5437-2131 WOODWARD ProTech-GII Overspeed Protection System integrate compliance with international functional safety standards?

A:
The 5437-2131 ProTech-GII platform is designed to comply with IEC 61508 SIL-3 certification requirements, as well as API 670 and API 612 standards, making it suitable for mission-critical rotating equipment protection in high-risk industrial environments.

Q4: What is the trip signal processing methodology implemented in the 5437-2131 WOODWARD ProTech-GII Overspeed Protection System?

A:
The 5437-2131 system implements either independent trip relay outputs or a voted 2-out-of-3 trip relay configuration, allowing configurable safety logic that supports both redundancy maximization and selective fault isolation strategies.

Q5: How does the 5437-2131 WOODWARD ProTech-GII Overspeed Protection System manage high-speed transient detection latency?

A:
The 5437-2131 unit achieves an ultra-fast response time in the range of approximately 12 milliseconds, enabling near-instantaneous protective actuation during overspeed or acceleration excursions in rotating machinery.
