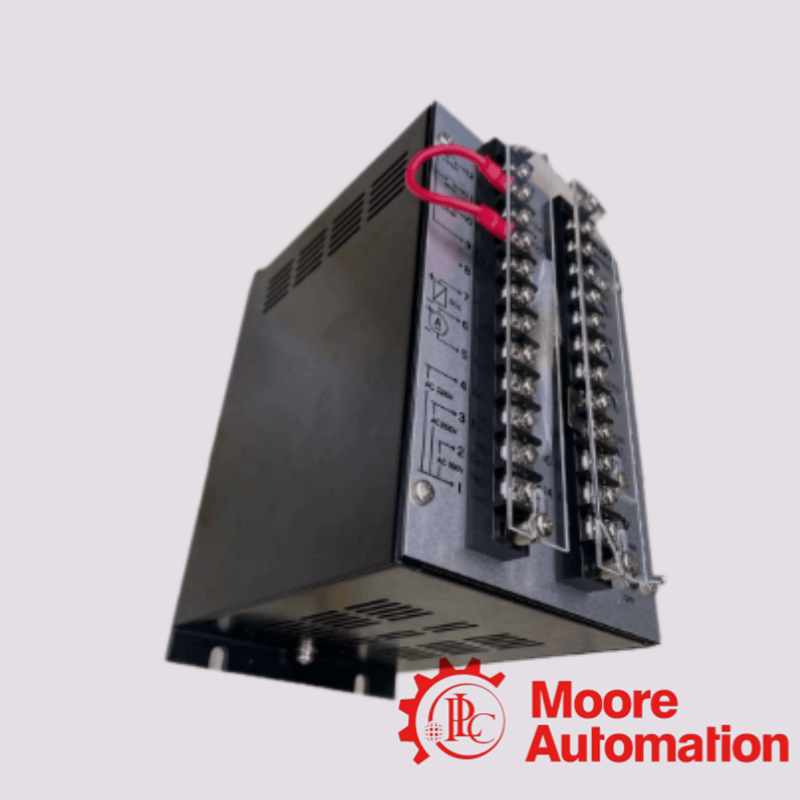

KF-5-10 Loop Control Unit

The KF-5-10 Loop Control Unit is an industrial-grade precision loop regulation and signal conditioning module engineered for advanced process automation systems. It is designed to deliver highly stable and accurate control of analog and electro-hydraulic feedback loops in demanding industrial environments.Operating as a multi-channel control interface, the KF-5-10 supports up to 10 independent input channels, enabling simultaneous acquisition and regulation of multiple process variables. It is widely utilized in applications such as hydraulic proportional control systems, HVAC automation, injection molding machinery, and industrial process regulation networks.

Q1. What is the fundamental control architecture and signal processing topology implemented in the KF-5-10 Loop Control Unit?

The KF-5-10 Loop Control Unit is architected as a multi-channel industrial feedback controller supporting analog signal acquisition and regulation across process loops. According to datasheet-level specifications, it integrates 10 independent input channels capable of processing standard industrial signals such as 0–5V DC and 4–20 mA current loops, enabling hybrid compatibility with both voltage- and current-mode transmitters.

Its internal topology is designed for distributed loop conditioning and centralized signal arbitration, ensuring deterministic response in multi-variable process control environments.

Q2. How does the KF-5-10 achieve high-precision measurement fidelity under industrial noise conditions?

The KF-5-10 achieves measurement integrity through high-resolution analog front-end conditioning combined with galvanic noise immunity design principles. With a specified accuracy of approximately ±0.1% full-scale deviation, the system employs:

• Precision input scaling networks
• Industrial-grade signal isolation
• Digital filtering strategies for transient suppression

These mechanisms collectively minimize electromagnetic interference (EMI) susceptibility and ensure stable loop fidelity in electrically hostile environments.

Q3. What communication protocol stack is embedded within the KF-5-10, and how does it support industrial interoperability?

The KF-5-10 integrates an RS-485 physical layer interface operating under the Modbus RTU protocol framework, enabling:

• Multi-drop network configuration
• Deterministic master-slave polling architecture
• Long-distance differential signal transmission

This communication model ensures seamless interoperability with PLC systems, SCADA platforms, and distributed control architectures (DCS).

Q4. What is the thermal and environmental operational envelope of the KF-5-10, and how does it sustain performance stability?

The KF-5-10 is engineered for extended industrial deployment within a temperature range of approximately −20°C to +50°C (or higher depending on variant specifications).

Its environmental resilience is achieved through:

• Thermally stable component selection
• Convection-optimized enclosure design
• Derated operation under elevated ambient stress conditions

This ensures parameter drift minimization across thermal cycling events.

Q5. What is the significance of the KF-5-10’s 10-channel input architecture in process automation systems?

The 10-channel multiplexed acquisition structure allows the KF-5-10 to function as a compact multi-loop supervisory controller, enabling:

• Simultaneous monitoring of multiple process variables
• Reduction in distributed controller hardware footprint
• Centralized signal normalization and processing

This architecture is particularly advantageous in HVAC systems, chemical processing lines, and multi-zone industrial automation networks.
