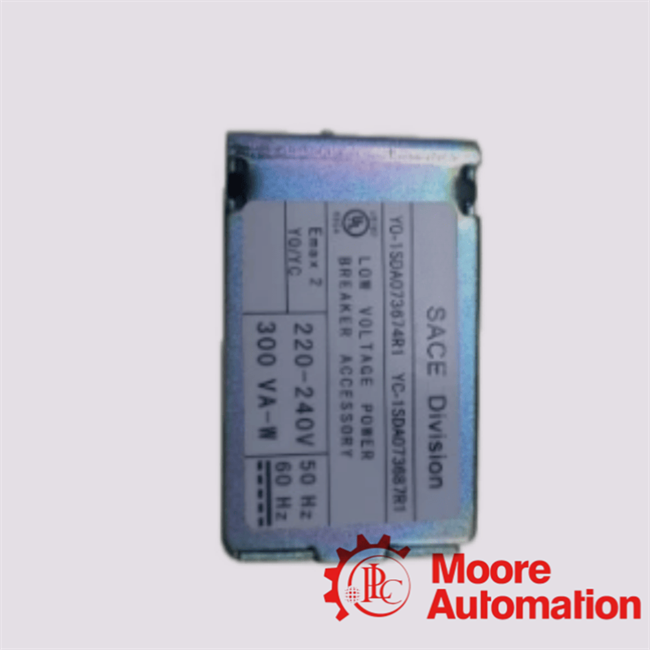

1SDA073674R1/1SDA073687R1 ABB Shunt Trip Unit
What’s app/Mobile:86-18020776792 Skpye:miyazheng520
Email:miya@mvme.cn (click) Contact our manager : Miya
Product’s description
The ABB 1SDA073674R1 / 1SDA073687R1 Shunt Trip Unit is a high-reliability electromagnetic breaker control accessory that enables remote tripping and closing of ABB SACE circuit breakers. With its 220–240 V AC/DC coil architecture, modular plug-in design, and compatibility with Emax 2 and Tmax XT systems, it provides a critical interface for modern automated power distribution and industrial safety systems.
| Product’s features and Functions: |
| Product Features |
Functions |
- The 1SDA073674R1 / 1SDA073687R1 is a modular electromagnetic breaker accessory set, combining shunt opening (YO) and shunt closing (YC) functionality for ABB SACE air and molded case circuit breakers
- Designed for remote actuation of circuit breaker mechanical operating mechanisms, enabling external control of switching states in protection and automation systems
- Supports dual-mode control voltage operation (220–240 V AC/DC) for universal integration in industrial control architectures
- Compatible with ABB SACE Emax 2 and Tmax XT series breakers, ensuring cross-platform accessory standardization
- Provides electromagnetic coil-driven latch actuation, enabling fast and deterministic breaker opening/closing response
- Enables integration into emergency shutdown (ESD), fire protection, and interlock safety circuits for critical infrastructure applications
- Supports centralized SCADA/PLC-based control strategies, allowing remote switching of power distribution feeders
- Designed as a plug-in modular accessory, enabling fast installation without modification of breaker frame architecture
- Optimized for industrial-grade operational reliability, suitable for harsh electrical environments with switching transients
- Enhances selective coordination and protection system automation, improving fault isolation and system uptime
- Compact mechanical design ensures high-density switchgear cabinet integration
- Built for high operational endurance under intermittent coil energization duty cycles
|
1. Remote Opening and Closing Control Functionality
The 1SDA073674R1 / 1SDA073687R1 provides direct electromagnetic control of ABB SACE circuit breakers:
1SDA073674R1 (YO – Shunt Opening Release): Enables remote tripping (opening) of the circuit breaker
1SDA073687R1 (YC – Shunt Closing Release): Enables remote closing of the circuit breaker
This allows centralized and automated switching control in modern power distribution systems.
2. Electromagnetic Actuation Mechanism
The 1SDA073674R1 / 1SDA073687R1 operates via an electromagnetic coil-driven mechanism:
Control voltage energizes the coil
Magnetic field is generated instantly
Mechanical latch system is actuated
Circuit breaker state changes (open/close)
This ensures fast, deterministic switching response suitable for protection-critical applications.
3. AC/DC Universal Control Voltage Compatibility
The unit supports a wide control voltage range:
220–240 V AC operation
220–240 V DC operation
This AC/DC dual compatibility allows the 1SDA073674R1 / 1SDA073687R1 to be used in diverse industrial control architectures without requiring separate coil variants.
4. Integration with ABB SACE Circuit Breaker Platforms
The 1SDA073674R1 / 1SDA073687R1 is designed for seamless integration with:
ABB SACE Emax 2 (E1.2 to E6.2 frames)
ABB Tmax XT series (including XT7 / XT7M)
It uses a modular plug-in interface, enabling quick installation into breaker accessory compartments.
|
|
|
|
FAQ: Advanced Technical Perspectives on 1SDA073674R1/1SDA073687R1
Q1: What is the electromechanical actuation principle and coil energization topology governing the operational behavior of the 1SDA073674R1/1SDA073687R1 within SACE circuit breaker architectures?
A:
The 1SDA073674R1/1SDA073687R1 functions as an electromagnetically actuated shunt trip release module, designed to remotely initiate breaker opening or closing (depending on configuration variant). It operates via a controlled coil energization mechanism (220–240 V AC/DC) that generates a magnetic force sufficient to mechanically disengage the breaker latch system in ABB SACE Emax 2 / Tmax XT platforms. This ensures deterministic interruption of fault or control-triggered conditions.
Q2: How does the 1SDA073674R1/1SDA073687R1 implement high-voltage control signal compatibility across AC/DC dual-mode excitation environments?
A:
The 1SDA073674R1/1SDA073687R1 supports a wide-range AC/DC control voltage interface (220–240 V nominal), enabling dual-mode excitation without polarity sensitivity in AC operation and stable coil response in DC excitation scenarios. This duality enhances interoperability in mixed industrial power control systems, particularly in switchgear automation panels where standardized auxiliary control voltage rails are employed.
Q3: What is the functional differentiation between shunt opening and shunt closing operations within the 1SDA073674R1/1SDA073687R1 modular release framework?
A:
Within the 1SDA073674R1/1SDA073687R1 assembly, the shunt opening release (YO function) is responsible for forced tripping of the breaker under external control signals, while the complementary shunt closing module (YC variant in paired configurations) enables remote reclosing. The 1SDA073674R1/1SDA073687R1 thus participates in a bidirectional electromechanical command architecture for remote switchgear operation and automation sequencing.
Q4: What dielectric insulation coordination and transient withstand characteristics define the 1SDA073674R1/1SDA073687R1 in high-energy fault environments?
A:
The 1SDA073674R1/1SDA073687R1 is engineered to operate within ABB’s low-voltage switchgear insulation coordination framework, ensuring resistance to transient overvoltages and electromagnetic impulse stress. The coil and auxiliary circuits are designed with reinforced insulation classes to withstand industrial switching surges, ensuring operational integrity during high-energy fault interruption events in MCC and distribution systems.
Q5: How does the 1SDA073674R1/1SDA073687R1 optimize mechanical trip force transfer efficiency within SACE Tmax XT and Emax 2 breaker kinematic systems?
A:
The 1SDA073674R1/1SDA073687R1 converts electromagnetic coil energy into mechanical latch disengagement force via a calibrated plunger-actuator interface. This ensures rapid and repeatable energy transfer with minimal mechanical hysteresis. The optimized force profile guarantees consistent trip response across different breaker frame sizes (E1.2 to E6.2 and XT7 platforms).
