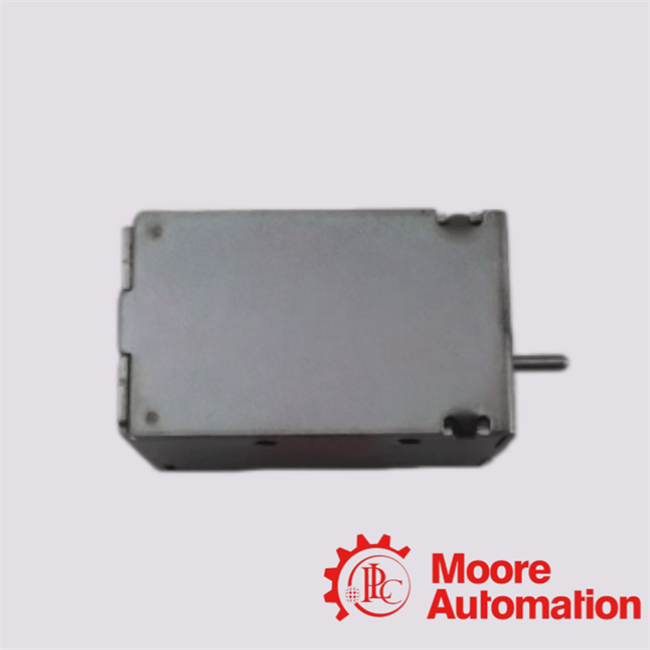

The 1SDA073700R1 is an undervoltage release (UVR) accessory module designed by ABB for integration with SACE Emax 2 air circuit breakers and Tmax XT molded case circuit breakers. It is used to continuously monitor control supply voltage and automatically trigger breaker opening when the voltage falls below a defined operational threshold, ensuring fail-safe electrical system behavior in industrial and infrastructure applications.This device is classified as a protective breaker accessory, operating as an electromechanical safety interface between control voltage integrity and circuit breaker mechanical actuation.

Q1: What is the functional classification and electromechanical protection topology of the 1SDA073700R1 within ABB SACE breaker accessory ecosystems?

A:
The 1SDA073700R1 is classified as an undervoltage release (UVR) accessory module, designed for ABB SACE circuit breakers such as Emax 2 and Tmax XT series. It operates by continuously monitoring control supply voltage and triggering breaker opening when voltage falls below a defined threshold, ensuring fail-safe disconnection under abnormal power conditions.

Q2: How does the 1SDA073700R1 implement voltage-dependent trip logic under AC/DC dual-mode excitation conditions?

A:
The 1SDA073700R1 supports 220–240 V AC/DC control supply operation, enabling universal integration into industrial control architectures. Its internal electromagnetic coil is energized only when voltage remains within acceptable limits; a voltage drop causes immediate de-energization, initiating mechanical release of the breaker latch.

Q3: What is the fail-safe operational philosophy embedded in the 1SDA073700R1 undervoltage release mechanism?

A:
The 1SDA073700R1 is engineered on a fail-safe principle, meaning the circuit breaker cannot remain closed without a stable control voltage. In the event of supply failure, brownout, or control circuit interruption, the module automatically forces breaker opening, ensuring protection continuity in safety-critical power systems.

Q4: How does the 1SDA073700R1 ensure coordination with Emax 2 and Tmax XT mechanical trip assemblies?

A:
The 1SDA073700R1 interfaces directly with ABB SACE breaker mechanical trip units through a modular plug-in accessory architecture. When undervoltage conditions occur, the coil-driven actuator mechanically disengages the closing latch system, ensuring synchronized operation with breaker kinematics across multiple frame sizes (E1.2–E6.2, XT7–XT7M).

Q5: What are the electrical operating thresholds and voltage tolerance characteristics governing the 1SDA073700R1?

A:
The 1SDA073700R1 operates within a nominal 220–240 V AC/DC control voltage range, with IEC-compliant undervoltage detection thresholds. The module continuously evaluates supply integrity and triggers trip action when voltage drops below the minimum operational holding level required for coil energization.
